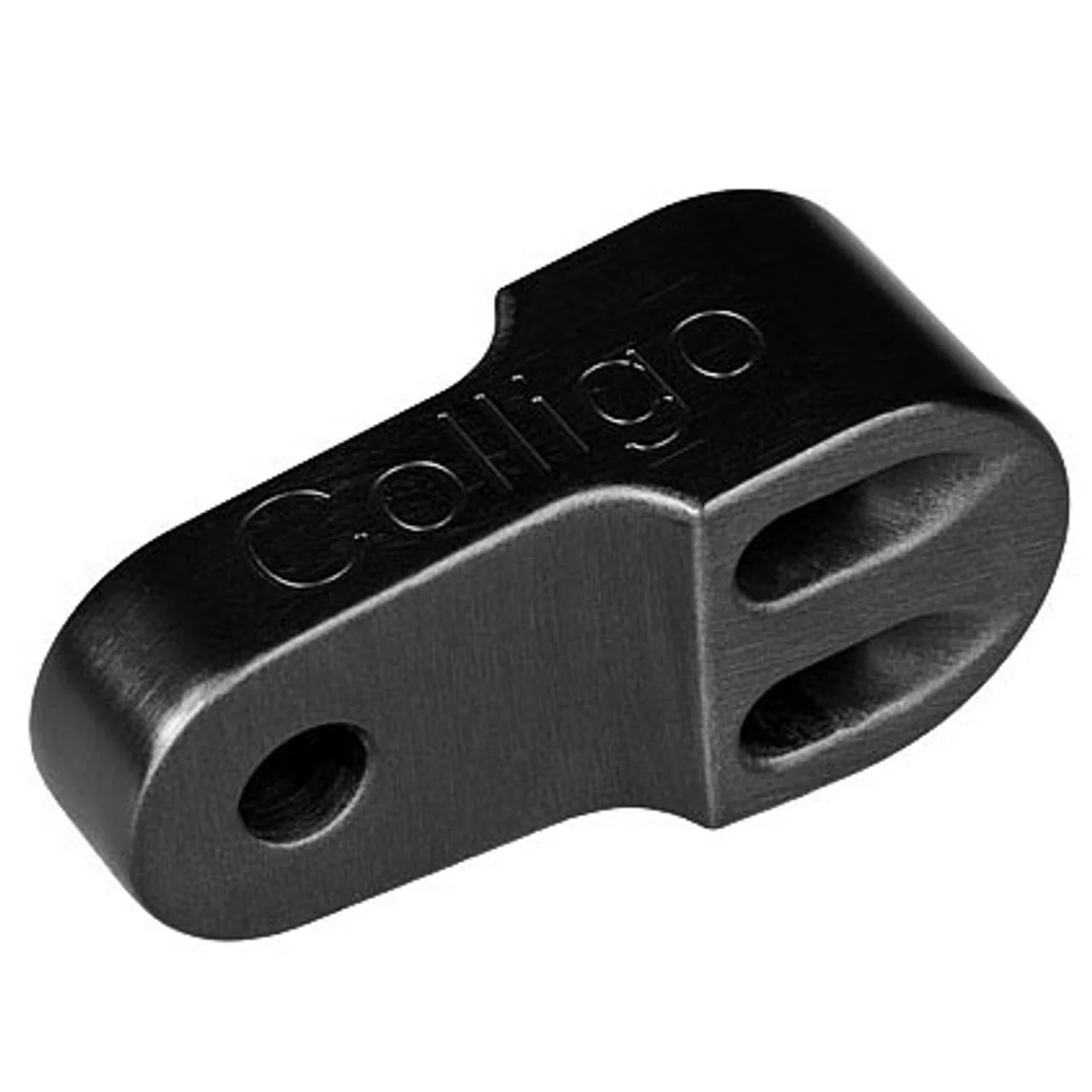

Colligo Marine Carbon Chainplate/Male Distributor, Black, 1/4"
Manufacturer part #: CSS90BLK
Note: Not Sleeved- reccomend Isolating Gel (teflon).
Manufacturer part #: CSS90BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
4 lashing lines for greater load distribution and easy tensioning Wide lashing hole distribution for easy final tensioning Hardcoat anodizing Extra large sections for higher strength rating Made from 6061-T6, Billet Aluminum Sleeved Mounting Pin holes for long term durability. Note: Some pin size flexibility is designed into these parts. If you need a different pin hole size then email or call us.
| Features | American | Metric | |
|---|---|---|---|
| Description | Male Carbon Chainplate Distributors | ||
| Lashing Holes | 2 | ||
| Hole Size w/o Sleeve | 0.25 in | 6.4 mm | |
| A | 0.25 in | 6.4 mm | |
| D | 0.7 in | 18 mm | |
| E | 0.875 in | 22 mm | |
| F | 0.394 in | 10 mm | |
| G | 1/4 in | 6.4 mm | |
| Safe Working Load | 3000 lb | 1360 kg | |
| Break Strength | 7000 lb | 3175 kg | |
| Weight | 1 oz | 27 gr | |
Manufacturer part #: CSS90BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
Manufacturer part #: CSS90BLK
Note: Not Sleeved- reccomend Isolating Gel (teflon).
Manufacturer part #: CSS90BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
4 lashing lines for greater load distribution and easy tensioning Wide lashing hole distribution for easy final tensioning Hardcoat anodizing Extra large sections for higher strength rating Made from 6061-T6, Billet Aluminum Sleeved Mounting Pin holes for long term durability. Note: Some pin size flexibility is designed into these parts. If you need a different pin hole size then email or call us.
| Features | American | Metric | |
|---|---|---|---|
| Description | Male Carbon Chainplate Distributors | ||
| Lashing Holes | 2 | ||
| Hole Size w/o Sleeve | 0.25 in | 6.4 mm | |
| A | 0.25 in | 6.4 mm | |
| D | 0.7 in | 18 mm | |
| E | 0.875 in | 22 mm | |
| F | 0.394 in | 10 mm | |
| G | 1/4 in | 6.4 mm | |
| Safe Working Load | 3000 lb | 1360 kg | |
| Break Strength | 7000 lb | 3175 kg | |
| Weight | 1 oz | 27 gr | |
Manufacturer part #: CSS90BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
