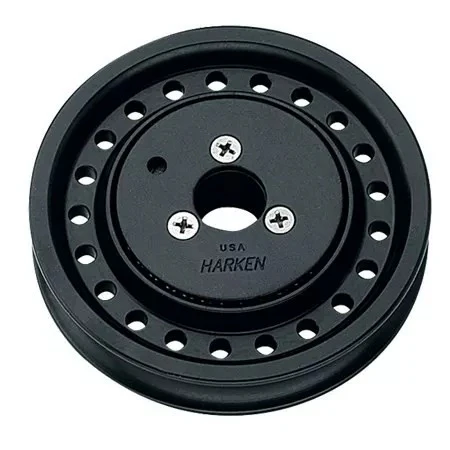

Harken 102mm High-Load Sheave
Harken 102mm High-Load Sheave
High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
Technical Description
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Width (mm) | 22 mm |
| Width (in) | 7/8 in |
| Weight (g) | 284 g |
| Weight (oz) | 10 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum wire Ø (mm) | 8 mm |
| Maximum wire Ø (in) | 5/16 in |
| Center pin Ø (mm) | 17.6 mm |
| Center pin Ø (in) | 11/16 in |
| Maximum working load (kg) | 5443 kg |
| Maximum working load (lb) | 12000 lb |
| Breaking load (kg) | 14515 kg |
| Breaking load (lb) | 32000 lb |
Harken 102mm High-Load Sheave
High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
Technical Description
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Width (mm) | 22 mm |
| Width (in) | 7/8 in |
| Weight (g) | 284 g |
| Weight (oz) | 10 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum wire Ø (mm) | 8 mm |
| Maximum wire Ø (in) | 5/16 in |
| Center pin Ø (mm) | 17.6 mm |
| Center pin Ø (in) | 11/16 in |
| Maximum working load (kg) | 5443 kg |
| Maximum working load (lb) | 12000 lb |
| Breaking load (kg) | 14515 kg |
| Breaking load (lb) | 32000 lb |
$423.95
Harken 102mm High-Load Sheave—
$423.95
