Harken 10mm High Resistance D Shackle
Harken 10mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Technical Description
| Weight (g) | 111 g |
| Weight (oz) | 3.92 oz |
| Maximum working load (kg) | 3720 kg |
| Maximum working load (lb) | 8210 lb |
| Breaking load (kg) | 7450 kg |
| Breaking load (lb) | 16420 lb |

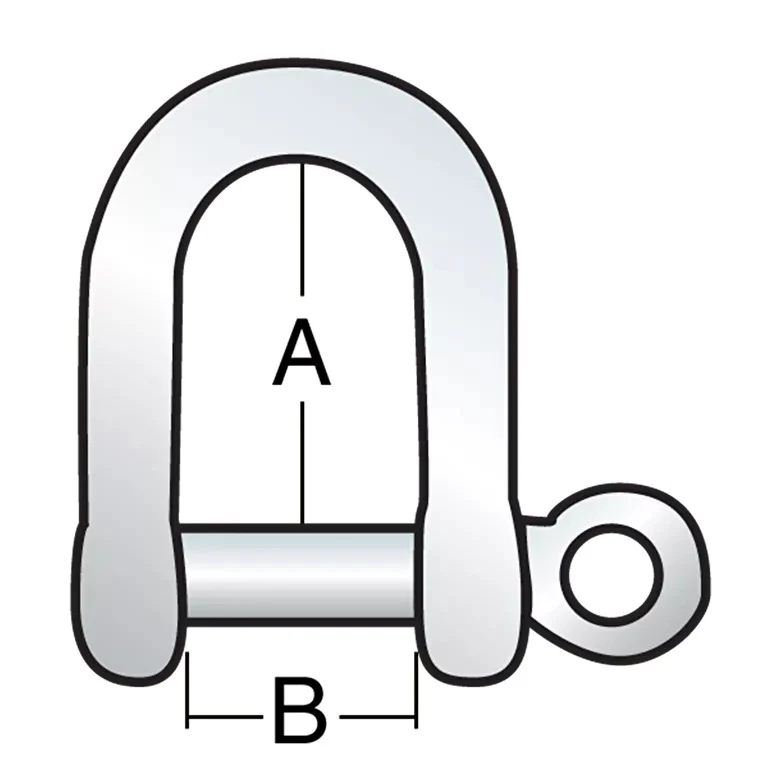

| A (mm) | 32 mm |
| A (in) | 1 1/4 in |
| B (mm) | 20 mm |
| B (in) | 13/16 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
Harken 10mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Technical Description
| Weight (g) | 111 g |
| Weight (oz) | 3.92 oz |
| Maximum working load (kg) | 3720 kg |
| Maximum working load (lb) | 8210 lb |
| Breaking load (kg) | 7450 kg |
| Breaking load (lb) | 16420 lb |
| A (mm) | 32 mm |
| A (in) | 1 1/4 in |
| B (mm) | 20 mm |
| B (in) | 13/16 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
Original: $126.95
-70%$126.95
$38.09Description
Harken 10mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Technical Description
| Weight (g) | 111 g |
| Weight (oz) | 3.92 oz |
| Maximum working load (kg) | 3720 kg |
| Maximum working load (lb) | 8210 lb |
| Breaking load (kg) | 7450 kg |
| Breaking load (lb) | 16420 lb |
| A (mm) | 32 mm |
| A (in) | 1 1/4 in |
| B (mm) | 20 mm |
| B (in) | 13/16 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
