Harken 10mm Twist Shackle
Harken 10mm Twist Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Technical Description
| Weight (g) | 140.5 g |
| Weight (oz) | 4.96 oz |
| Maximum working load (kg) | 2210 kg |
| Maximum working load (lb) | 4870 lb |
| Breaking load (kg) | 4420 kg |
| Breaking load (lb) | 9740 lb |

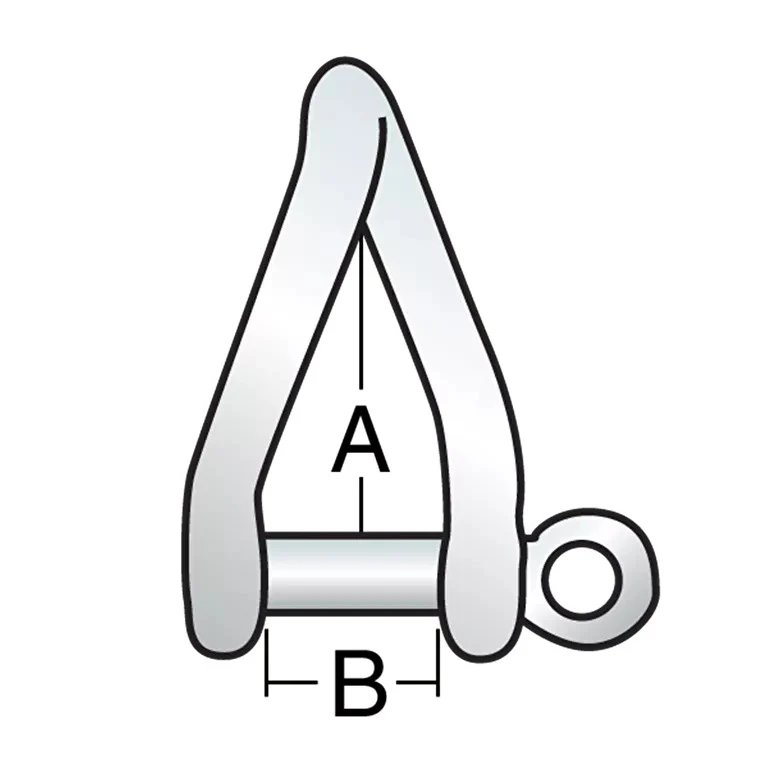

| A (mm) | 48 mm |
| A (in) | 1 7/8 in |
| B (mm) | 19 mm |
| B (in) | 3/4 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
Harken 10mm Twist Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Technical Description
| Weight (g) | 140.5 g |
| Weight (oz) | 4.96 oz |
| Maximum working load (kg) | 2210 kg |
| Maximum working load (lb) | 4870 lb |
| Breaking load (kg) | 4420 kg |
| Breaking load (lb) | 9740 lb |
| A (mm) | 48 mm |
| A (in) | 1 7/8 in |
| B (mm) | 19 mm |
| B (in) | 3/4 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
Original: $59.95
-70%$59.95
$17.98Description
Harken 10mm Twist Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Technical Description
| Weight (g) | 140.5 g |
| Weight (oz) | 4.96 oz |
| Maximum working load (kg) | 2210 kg |
| Maximum working load (lb) | 4870 lb |
| Breaking load (kg) | 4420 kg |
| Breaking load (lb) | 9740 lb |
| A (mm) | 48 mm |
| A (in) | 1 7/8 in |
| B (mm) | 19 mm |
| B (in) | 3/4 in |
| Shackle pin Ø (mm) | 10 mm |
| Shackle pin Ø (in) | 13/32 in |
