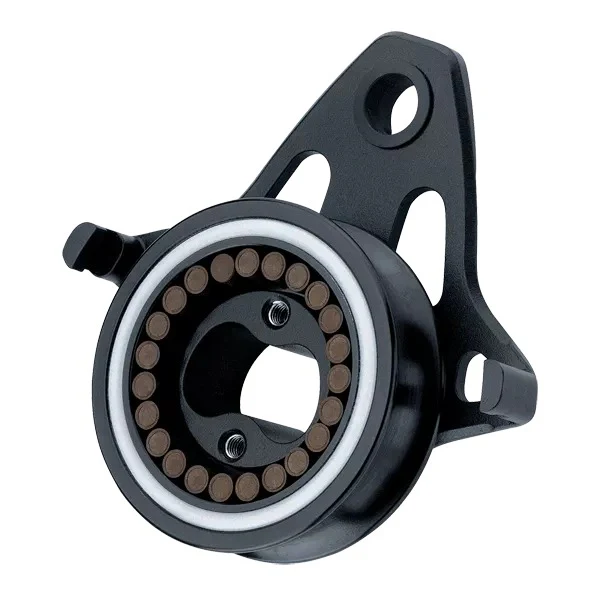

Harken 125mm Aluminum Standup Block
Harken 125mm Aluminum Standup Block
Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action. Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon roller bearings separated and parallel to reduce friction. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Technical Description
| Sheave Ø (mm) | 125 mm |
| Sheave Ø (in) | 4 15/16 in |
| Length (mm) | 230 mm |
| Length (in) | 9 1/16 in |
| Width (mm) | 127.5 mm |
| Width (in) | 5 1/32 in |
| Weight (g) | 1262 g |
| Weight (oz) | 44.72 oz |
| Maximum line Ø (mm) | 19 mm |
| Maximum line Ø (in) | 3/4 in |
| Maximum working load (kg) | 4990 kg |
| Maximum working load (lb) | 11000 lb |
| Breaking load (kg) | 9979 kg |
| Breaking load (lb) | 22000 lb |
| Includes | Includes padeye. Uses hole spacing and base dimensions of 648 padeye. Maximum working load decreases at varying angles. |
| A (mm) | 93 mm |
| A (in) | 3 21/32 in |
| B (mm) | 106 mm |
| B (in) | 4 3/16 in |
| C (mm) | 57 mm |
| C (in) | 2 1/4 in |
