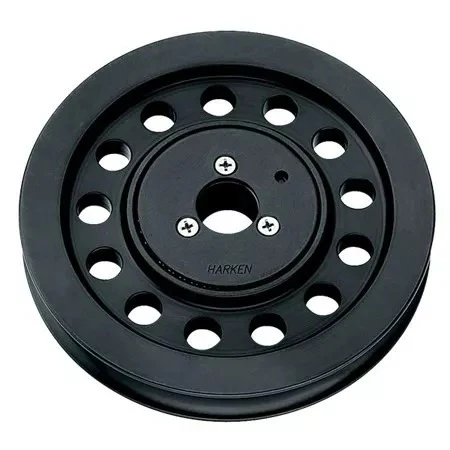

Harken 152mm High-Load Sheave
Harken 152mm High-Load Sheave
High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
Technical Description
| Sheave Ø (mm) | 152 mm |
| Sheave Ø (in) | 6 in |
| Width (mm) | 25 mm |
| Width (in) | 1 in |
| Weight (g) | 652 g |
| Weight (oz) | 23 oz |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Maximum wire Ø (mm) | 10 mm |
| Maximum wire Ø (in) | 3/8 in |
| Center pin Ø (mm) | 22.8 mm |
| Center pin Ø (in) | 7/8 in |
| Maximum working load (kg) | 8165 kg |
| Maximum working load (lb) | 18000 lb |
| Breaking load (kg) | 23133 kg |
| Breaking load (lb) | 51000 lb |
Harken 152mm High-Load Sheave
High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
Technical Description
| Sheave Ø (mm) | 152 mm |
| Sheave Ø (in) | 6 in |
| Width (mm) | 25 mm |
| Width (in) | 1 in |
| Weight (g) | 652 g |
| Weight (oz) | 23 oz |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Maximum wire Ø (mm) | 10 mm |
| Maximum wire Ø (in) | 3/8 in |
| Center pin Ø (mm) | 22.8 mm |
| Center pin Ø (in) | 7/8 in |
| Maximum working load (kg) | 8165 kg |
| Maximum working load (lb) | 18000 lb |
| Breaking load (kg) | 23133 kg |
| Breaking load (lb) | 51000 lb |
$564.95
Harken 152mm High-Load Sheave—
$564.95
Description
Harken 152mm High-Load Sheave
High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.
Technical Description
| Sheave Ø (mm) | 152 mm |
| Sheave Ø (in) | 6 in |
| Width (mm) | 25 mm |
| Width (in) | 1 in |
| Weight (g) | 652 g |
| Weight (oz) | 23 oz |
| Maximum line Ø (mm) | 16 mm |
| Maximum line Ø (in) | 5/8 in |
| Maximum wire Ø (mm) | 10 mm |
| Maximum wire Ø (in) | 3/8 in |
| Center pin Ø (mm) | 22.8 mm |
| Center pin Ø (in) | 7/8 in |
| Maximum working load (kg) | 8165 kg |
| Maximum working load (lb) | 18000 lb |
| Breaking load (kg) | 23133 kg |
| Breaking load (lb) | 51000 lb |
