Harken 175mm Aluminum Stand-Up Block
Harken 175mm Aluminum Stand-Up Block

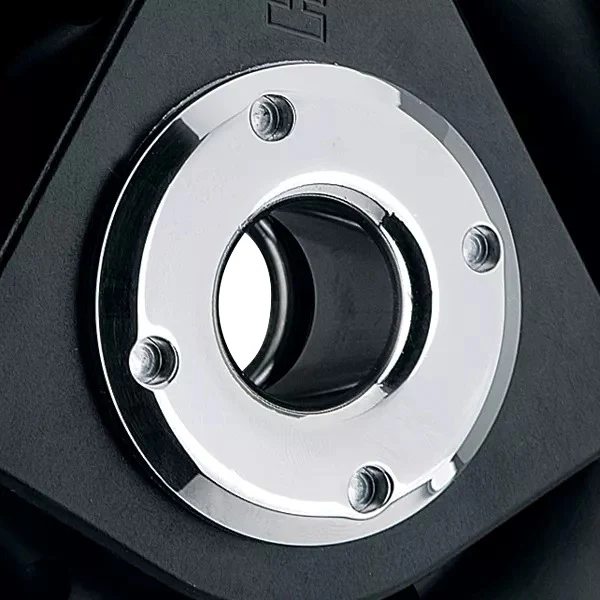

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Technical Description
| Sheave Ø (mm) | 175 mm |
| Sheave Ø (in) | 6 7/8 in |
| Length (mm) | 336.5 mm |
| Length (in) | 13 1/4 in |
| Weight (kg) | 6.36 kg |
| Weight (lb) | 14.03 lb |
| Maximum line Ø (mm) | 25 mm |
| Maximum line Ø (in) | 1 in |
| Maximum working load (kg) | 15000 kg |
| Maximum working load (lb) | 33075 lb |
| Breaking load (kg) | 30000 kg |
| Breaking load (lb) | 66150 lb |
Harken 175mm Aluminum Stand-Up Block
Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Technical Description
| Sheave Ø (mm) | 175 mm |
| Sheave Ø (in) | 6 7/8 in |
| Length (mm) | 336.5 mm |
| Length (in) | 13 1/4 in |
| Weight (kg) | 6.36 kg |
| Weight (lb) | 14.03 lb |
| Maximum line Ø (mm) | 25 mm |
| Maximum line Ø (in) | 1 in |
| Maximum working load (kg) | 15000 kg |
| Maximum working load (lb) | 33075 lb |
| Breaking load (kg) | 30000 kg |
| Breaking load (lb) | 66150 lb |
Description
Harken 175mm Aluminum Stand-Up Block
Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Technical Description
| Sheave Ø (mm) | 175 mm |
| Sheave Ø (in) | 6 7/8 in |
| Length (mm) | 336.5 mm |
| Length (in) | 13 1/4 in |
| Weight (kg) | 6.36 kg |
| Weight (lb) | 14.03 lb |
| Maximum line Ø (mm) | 25 mm |
| Maximum line Ø (in) | 1 in |
| Maximum working load (kg) | 15000 kg |
| Maximum working load (lb) | 33075 lb |
| Breaking load (kg) | 30000 kg |
| Breaking load (lb) | 66150 lb |
