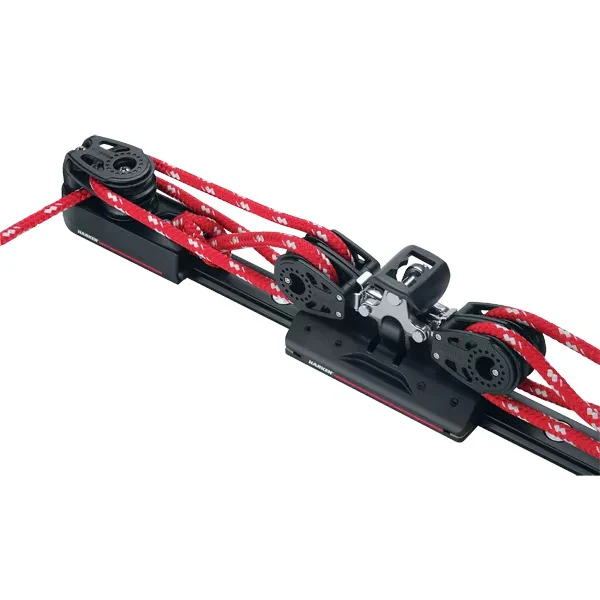

Harken 32mm Pair/Double Big Boat Traveler End Controls w/Cams
Harken 32mm Pair/Double Big Boat Traveler End Controls w/Cams
High-performance end controls allow the installation of 2:1 to 6:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Cam-Matic cleats keep weight minimal. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Technical Description
| Length (mm) | 122 mm |
| Length (in) | 4 13/16 in |
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Width (mm) | 104 mm |
| Width (in) | 4 1/8 in |
| Weight (g) | 1116 g |
| Weight (oz) | 39 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Fasteners (mm) | 10 RH mm |
| Maximum working load (kg) | 408 kg |
| Maximum working load (lb) | 900 lb |
| Breaking load (kg) | 1040 kg |
| Breaking load (lb) | 2300 lb |
| Height above track (mm) | 51 mm |
| Height above track (in) | 2 in |
| Weight for pair (g) | 1116 g |
| Weight for pair (oz) | 39 oz |
| Purchase | 3:1 / 4:1 |
Harken 32mm Pair/Double Big Boat Traveler End Controls w/Cams
High-performance end controls allow the installation of 2:1 to 6:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Cam-Matic cleats keep weight minimal. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Technical Description
| Length (mm) | 122 mm |
| Length (in) | 4 13/16 in |
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Width (mm) | 104 mm |
| Width (in) | 4 1/8 in |
| Weight (g) | 1116 g |
| Weight (oz) | 39 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Fasteners (mm) | 10 RH mm |
| Maximum working load (kg) | 408 kg |
| Maximum working load (lb) | 900 lb |
| Breaking load (kg) | 1040 kg |
| Breaking load (lb) | 2300 lb |
| Height above track (mm) | 51 mm |
| Height above track (in) | 2 in |
| Weight for pair (g) | 1116 g |
| Weight for pair (oz) | 39 oz |
| Purchase | 3:1 / 4:1 |
Description
Harken 32mm Pair/Double Big Boat Traveler End Controls w/Cams
High-performance end controls allow the installation of 2:1 to 6:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Cam-Matic cleats keep weight minimal. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Technical Description
| Length (mm) | 122 mm |
| Length (in) | 4 13/16 in |
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Width (mm) | 104 mm |
| Width (in) | 4 1/8 in |
| Weight (g) | 1116 g |
| Weight (oz) | 39 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Fasteners (mm) | 10 RH mm |
| Maximum working load (kg) | 408 kg |
| Maximum working load (lb) | 900 lb |
| Breaking load (kg) | 1040 kg |
| Breaking load (lb) | 2300 lb |
| Height above track (mm) | 51 mm |
| Height above track (in) | 2 in |
| Weight for pair (g) | 1116 g |
| Weight for pair (oz) | 39 oz |
| Purchase | 3:1 / 4:1 |
