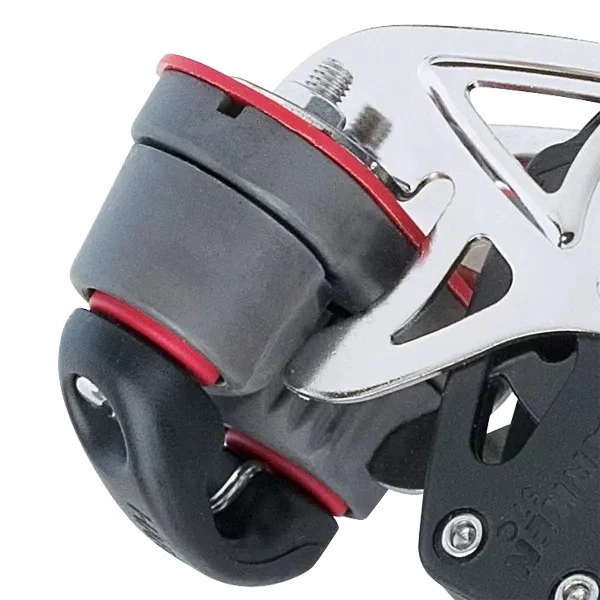

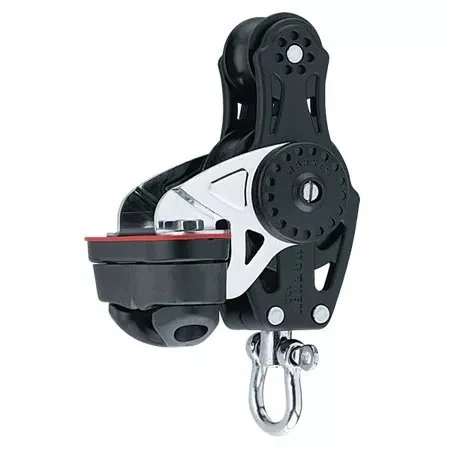

Harken 40mm Carbo Fiddle Block Swivel w/Cam Cleat
Harken 40mm Carbo Fiddle Block Swivel w/Cam Cleat
Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.
Technical Description
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Length (mm) | 115 mm |
| Length (in) | 4 1/2 in |
| Weight (g) | 125 g |
| Weight (oz) | 4.4 oz |
| Maximum line Ø (mm) | 6 mm |
| Maximum line Ø (in) | 1/4 in |
| Shackle pin Ø (mm) | 4 mm |
| Shackle pin Ø (in) | 5/32 in |
| Maximum working load (kg) | 204 kg |
| Maximum working load (lb) | 450 lb |
| Breaking load (lb) | 1500 lb |
| Breaking load (kg) | 680 kg |
Harken 40mm Carbo Fiddle Block Swivel w/Cam Cleat
Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.
Technical Description
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Length (mm) | 115 mm |
| Length (in) | 4 1/2 in |
| Weight (g) | 125 g |
| Weight (oz) | 4.4 oz |
| Maximum line Ø (mm) | 6 mm |
| Maximum line Ø (in) | 1/4 in |
| Shackle pin Ø (mm) | 4 mm |
| Shackle pin Ø (in) | 5/32 in |
| Maximum working load (kg) | 204 kg |
| Maximum working load (lb) | 450 lb |
| Breaking load (lb) | 1500 lb |
| Breaking load (kg) | 680 kg |
Description
Harken 40mm Carbo Fiddle Block Swivel w/Cam Cleat
Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.
Technical Description
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Length (mm) | 115 mm |
| Length (in) | 4 1/2 in |
| Weight (g) | 125 g |
| Weight (oz) | 4.4 oz |
| Maximum line Ø (mm) | 6 mm |
| Maximum line Ø (in) | 1/4 in |
| Shackle pin Ø (mm) | 4 mm |
| Shackle pin Ø (in) | 5/32 in |
| Maximum working load (kg) | 204 kg |
| Maximum working load (lb) | 450 lb |
| Breaking load (lb) | 1500 lb |
| Breaking load (kg) | 680 kg |
