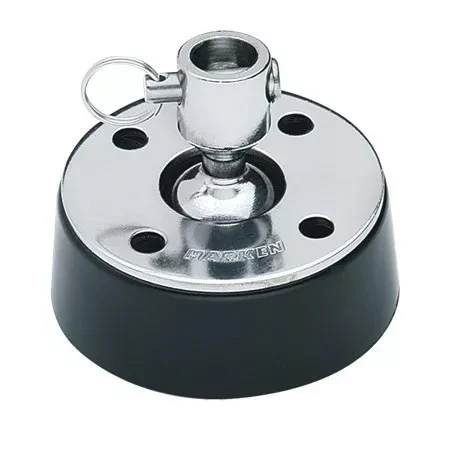

Harken 41mm Ball-and-Socket Base for 1/4 Pin
Harken 41mm Ball-and-Socket Base for 1/4 Pin
Stand-up bases allow a wide variety of blocks to be held upright, swivel freely, or pivot so lines have a fairlead under load. The ball-and-socket design lets blocks articulate up to 45 degrees and swivel freely. The 460 and 461 bases (high-load versions of the 010 and 029) have stainless steel reinforcement plates to handle the high load capacities of 57 mm and 75 mm Carbo blocks.
Technical Description
| Height (mm) | 51 mm |
| Height (in) | 2 in |
| Weight (g) | 128 g |
| Weight (oz) | 4.5 oz |
| Fastener (mm) | 5 FH mm |
| Fastener (in) | #10 FH in |
| Maximum working load (kg) | 454 kg |
| Maximum working load (lb) | 1000 lb |
| Breaking load (kg) | 1134 kg |
| Breaking load (lb) | 2500 lb |
| Base Ø (mm) | 54 mm |
| Base Ø (in) | 2 1/8 in |
| Pin Ø (mm) | 6 mm |
| Pin Ø (in) | 1/4 in |
| Inside socket Ø (mm) | 12 mm |
| Inside socket Ø (in) | 7/16 in |
| Use with blocks | 75 mm Carbo |
Harken 41mm Ball-and-Socket Base for 1/4 Pin
Stand-up bases allow a wide variety of blocks to be held upright, swivel freely, or pivot so lines have a fairlead under load. The ball-and-socket design lets blocks articulate up to 45 degrees and swivel freely. The 460 and 461 bases (high-load versions of the 010 and 029) have stainless steel reinforcement plates to handle the high load capacities of 57 mm and 75 mm Carbo blocks.
Technical Description
| Height (mm) | 51 mm |
| Height (in) | 2 in |
| Weight (g) | 128 g |
| Weight (oz) | 4.5 oz |
| Fastener (mm) | 5 FH mm |
| Fastener (in) | #10 FH in |
| Maximum working load (kg) | 454 kg |
| Maximum working load (lb) | 1000 lb |
| Breaking load (kg) | 1134 kg |
| Breaking load (lb) | 2500 lb |
| Base Ø (mm) | 54 mm |
| Base Ø (in) | 2 1/8 in |
| Pin Ø (mm) | 6 mm |
| Pin Ø (in) | 1/4 in |
| Inside socket Ø (mm) | 12 mm |
| Inside socket Ø (in) | 7/16 in |
| Use with blocks | 75 mm Carbo |
Original: $78.95
-70%$78.95
$23.68Description
