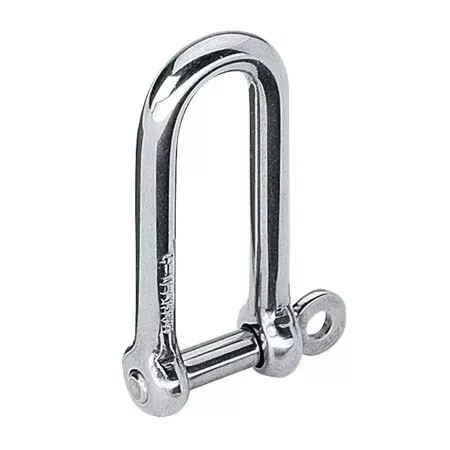

Harken 5mm Long Shackle
Harken 5mm Long Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.
Technical Description
| Weight (g) | 22 g |
| Weight (oz) | 0.78 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (kg) | 1080 kg |
| Breaking load (lb) | 2380 lb |

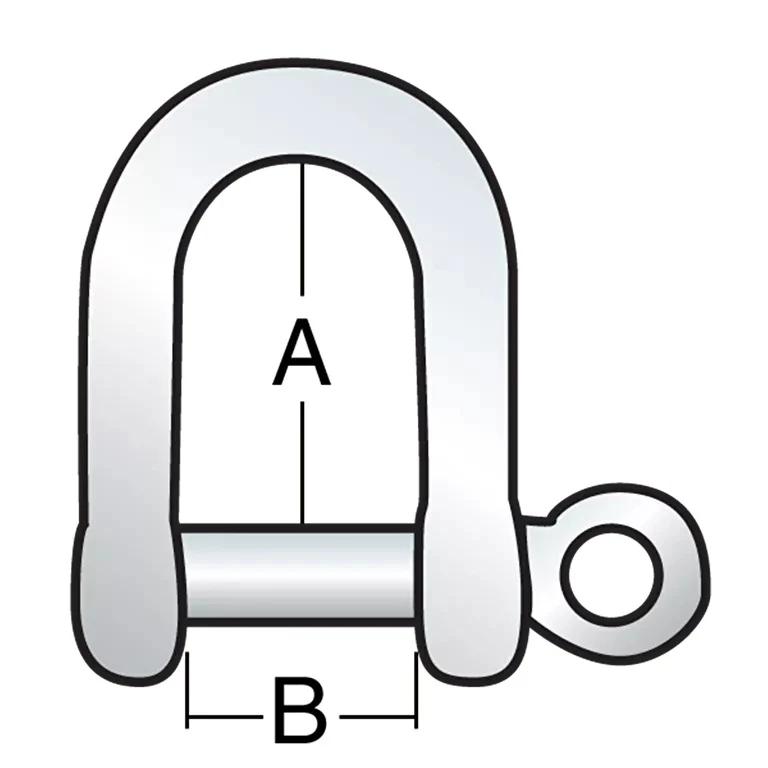

| A (mm) | 38 mm |
| A (in) | 1 1/2 in |
| B (mm) | 10 mm |
| B (in) | 3/8 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
Harken 5mm Long Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.
Technical Description
| Weight (g) | 22 g |
| Weight (oz) | 0.78 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (kg) | 1080 kg |
| Breaking load (lb) | 2380 lb |
| A (mm) | 38 mm |
| A (in) | 1 1/2 in |
| B (mm) | 10 mm |
| B (in) | 3/8 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
$4.18
Original: $13.95
-70%Harken 5mm Long Shackle—
$13.95
$4.18Description
Harken 5mm Long Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.
Technical Description
| Weight (g) | 22 g |
| Weight (oz) | 0.78 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (kg) | 1080 kg |
| Breaking load (lb) | 2380 lb |
| A (mm) | 38 mm |
| A (in) | 1 1/2 in |
| B (mm) | 10 mm |
| B (in) | 3/8 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
