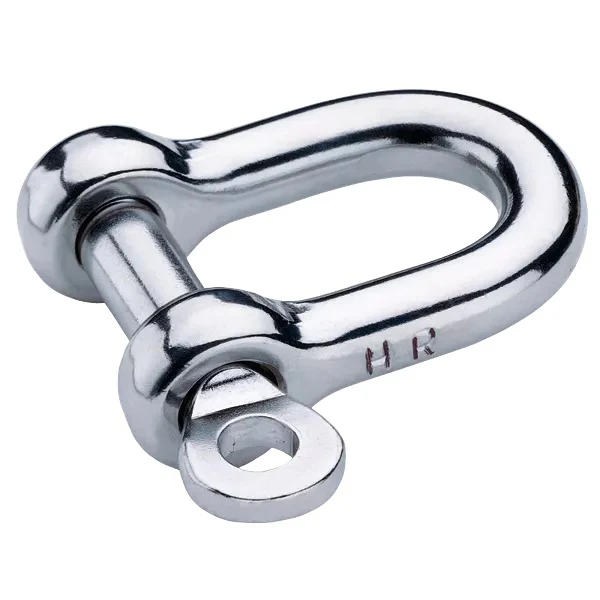

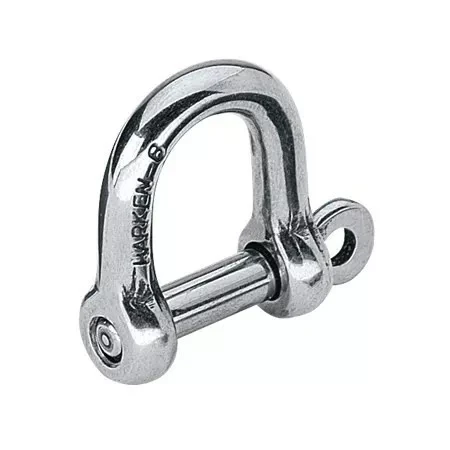

Harken 6mm High Resistance D Shackle
Harken 6mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Technical Description
| Weight (g) | 22.5 g |
| Weight (oz) | 0.8 oz |
| Maximum working load (kg) | 1260 kg |
| Maximum working load (lb) | 2770 lb |
| Breaking load (kg) | 2510 kg |
| Breaking load (lb) | 5540 lb |

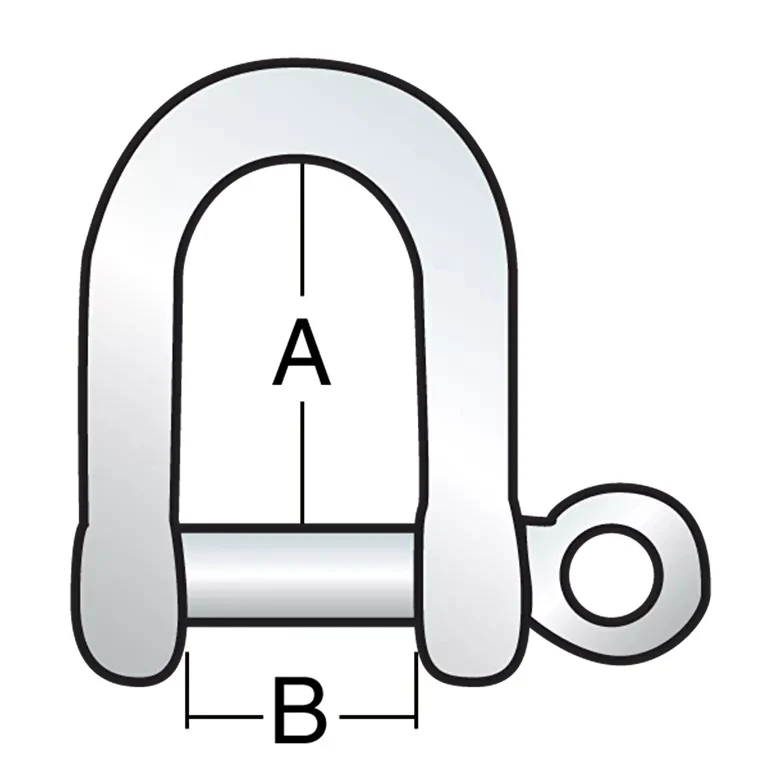

| A (mm) | 19 mm |
| A (in) | 3/4 in |
| B (mm) | 14 mm |
| B (in) | 9/16 in |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
Harken 6mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Technical Description
| Weight (g) | 22.5 g |
| Weight (oz) | 0.8 oz |
| Maximum working load (kg) | 1260 kg |
| Maximum working load (lb) | 2770 lb |
| Breaking load (kg) | 2510 kg |
| Breaking load (lb) | 5540 lb |
| A (mm) | 19 mm |
| A (in) | 3/4 in |
| B (mm) | 14 mm |
| B (in) | 9/16 in |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
