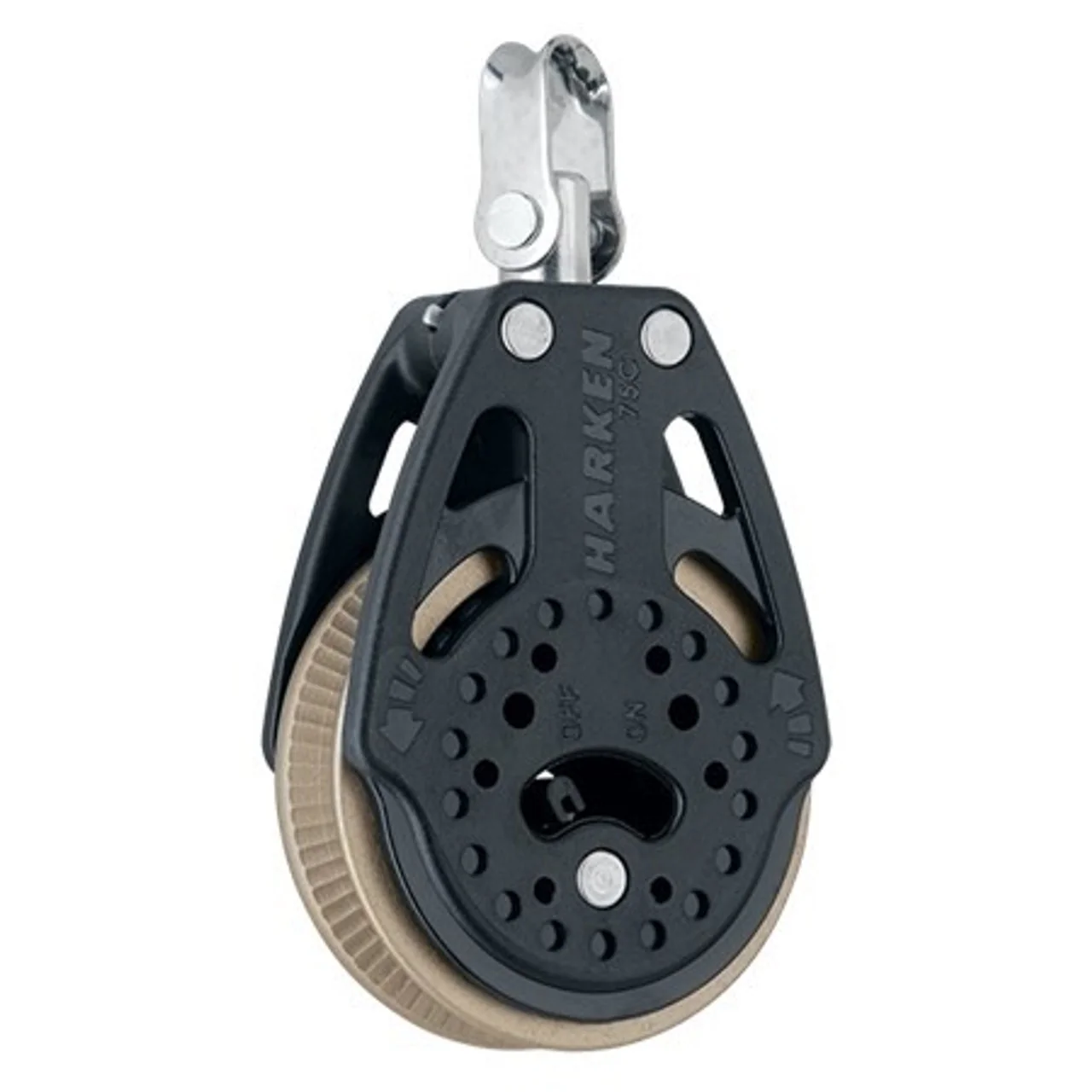

Harken 75mm Carbo Ratchet Block Swivel 1.5x Grip
Harken 75mm Carbo Ratchet Block Swivel 1.5x Grip

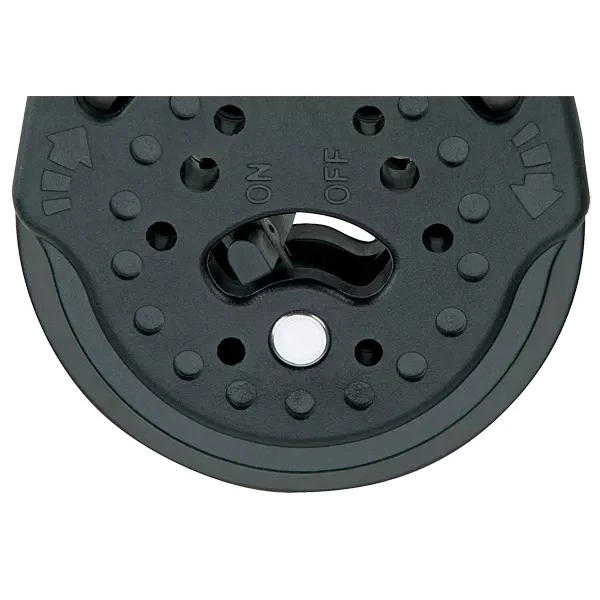

Power3 ratchet blocks provide sailors that race small one-designs with three holding-power options to handle a variety of wind and sea conditions. More choices allow sailors to fine-tune their set-ups in tandem with the purchase that provides the ideal level of power, responsiveness and grip. On/off switch operates from both sides. 1.5x grip: breeze–on/puffs; 22:1 holding power
Technical Description
| Sheave Ø (mm) | 75 mm |
| Sheave Ø (in) | 2 15/16 in |
| Length (mm) | 137 mm |
| Length (in) | 5 3/8 in |
| Weight (g) | 227 g |
| Weight (oz) | 8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 7/16 in |
| Maximum working load (kg) | 341 kg |
| Maximum working load (lb) | 750 lb |
| Breaking load (lb) | 3000 lb |
| Breaking load (kg) | 1361 kg |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
| Holding power | 22:1 |
