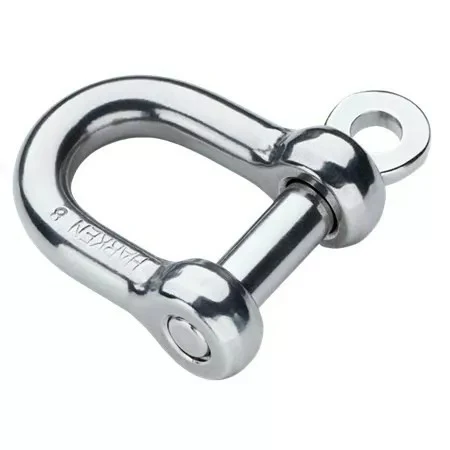

Harken 8mm D Shackle
Harken 8mm D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Technical Description
| Weight (g) | 59 g |
| Weight (oz) | 2.08 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |

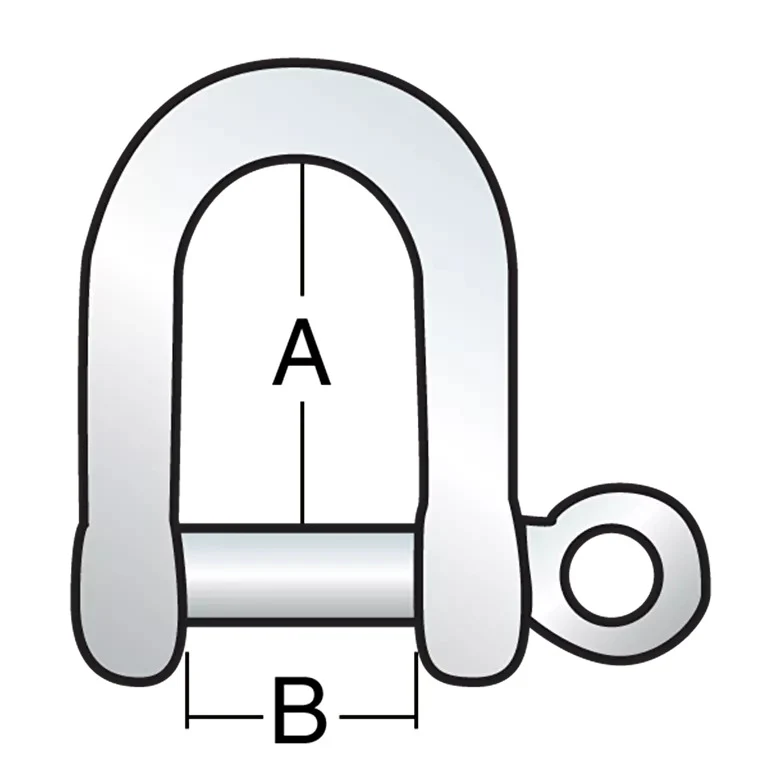

| A (mm) | 25 mm |
| A (in) | 1 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 15/16 in |
Harken 8mm D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Technical Description
| Weight (g) | 59 g |
| Weight (oz) | 2.08 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |
| A (mm) | 25 mm |
| A (in) | 1 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 15/16 in |
$6.28
Original: $20.95
-70%Harken 8mm D Shackle—
$20.95
$6.28Description
Harken 8mm D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Technical Description
| Weight (g) | 59 g |
| Weight (oz) | 2.08 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |
| A (mm) | 25 mm |
| A (in) | 1 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 15/16 in |
