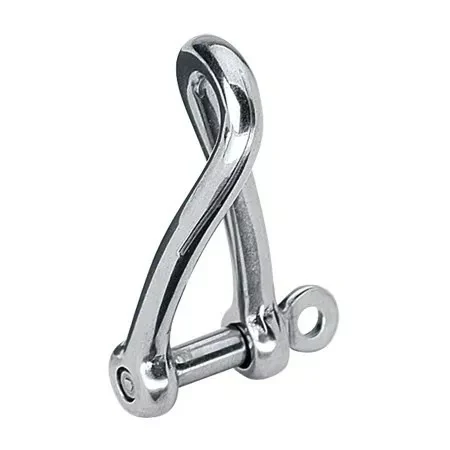

Harken 8mm Twist Shackle
Harken 8mm Twist Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Technical Description
| Weight (g) | 52 g |
| Weight (oz) | 1.84 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |

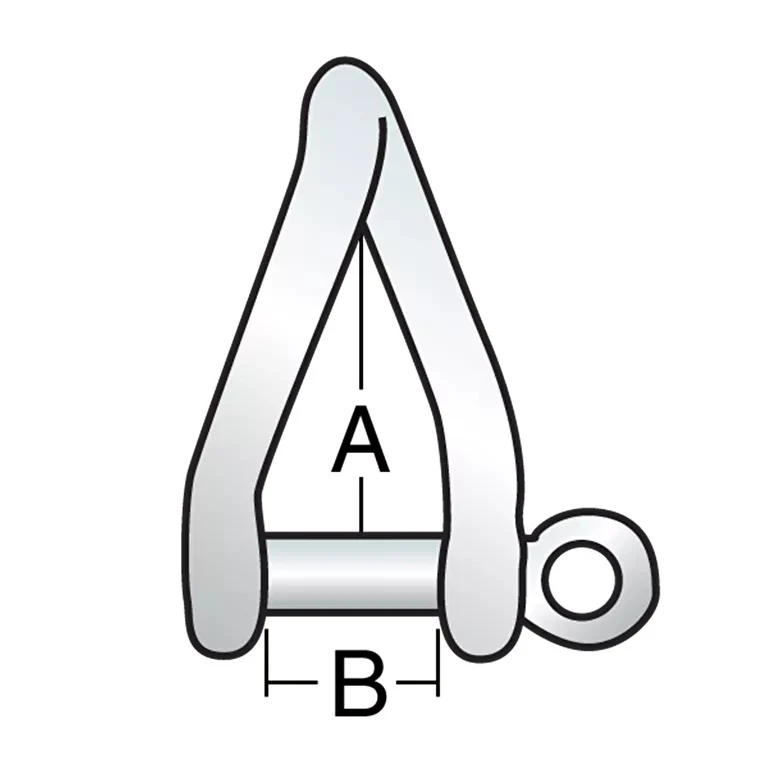

| A (mm) | 41 mm |
| A (in) | 1 5/8 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
Harken 8mm Twist Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Technical Description
| Weight (g) | 52 g |
| Weight (oz) | 1.84 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |
| A (mm) | 41 mm |
| A (in) | 1 5/8 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
Original: $27.95
-70%$27.95
$8.38Description
Harken 8mm Twist Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Technical Description
| Weight (g) | 52 g |
| Weight (oz) | 1.84 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |
| A (mm) | 41 mm |
| A (in) | 1 5/8 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
