Harken Midrange Spinnaker Pole Car (Bell End)
Harken Midrange Spinnaker Pole Car (Bell End)
Harken spinnaker pole cars feature recirculating ball bearings to permit adjustment under any load. They roll freely on low-beam traveler track to allow crew to adjust for optimal sail shape. Midrange and Big Boat cars accept two popular toggle studs and Harken bell end fittings.
Technical Description
| Length (mm) | 132 mm |
| Length (in) | 5 3/16 in |
| Width (mm) | 70 mm |
| Width (in) | 2 3/4 in |
| Weight (g) | 658 g |
| Weight (oz) | 23.2 oz |
| Maximum working load (kg) | 1043 kg |
| Maximum working load (lb) | 2300 lb |

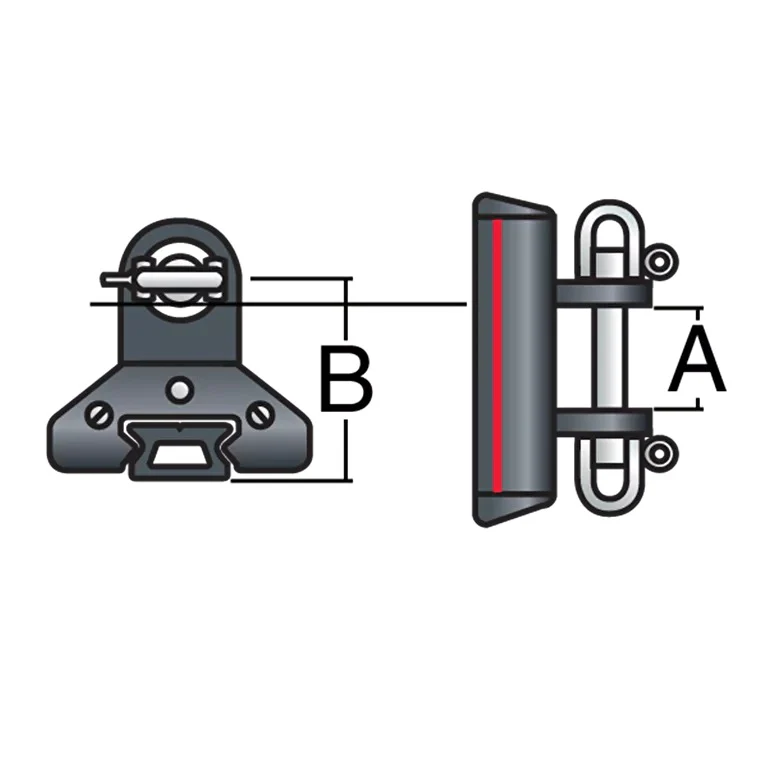

| A (mm) | 38 mm |
| A (in) | 1 1/2 in |
| Pin Ă (mm) | 12 mm |
| Pin Ă (in) | 15/32 in |
| Use with track/rail | R27 |
| Maximum spinnaker area (m²) | 140 m² |
| Maximum spinnaker area (ft²) | 1500 ft² |
| Pole end | B120/B130 bell end |
