Harken mm CB Battcar - M16 Stud for C-Tech Batten
Harken mm CB Battcar - M16 Stud for C-Tech Batten

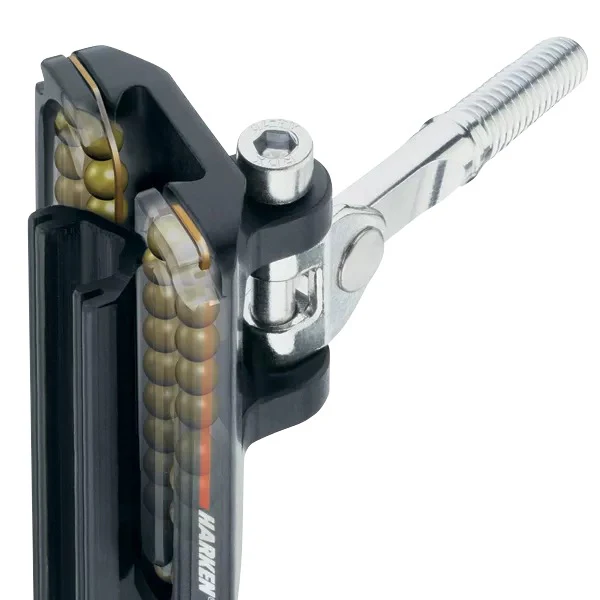

Favored by skippers and crew, Harken Battcar systems let you raise, douse, and reef the main instantly from the cockpit, even when close reaching in a big breeze. Battcar systems outperform in-mast or in-boom furling, cost far less, and sails don’t need to be recut. High-strength Torlon ball bearings circulate smoothly for fast sail hoists, douses, and reefs. Harken now offers an option that allows C-Tech batten receptacles to be used with our Battcar systems. The pintles have shoulders that protect the threads from bending, making them more robust.
Technical Description
| Length (mm) | 136 mm |
| Length (in) | 5 3/8 in |
| Weight (g) | 894 g |
| Weight (oz) | 31.5 oz |
| Width (mm) | 85 mm |
| Width (in) | 3 3/8 in |

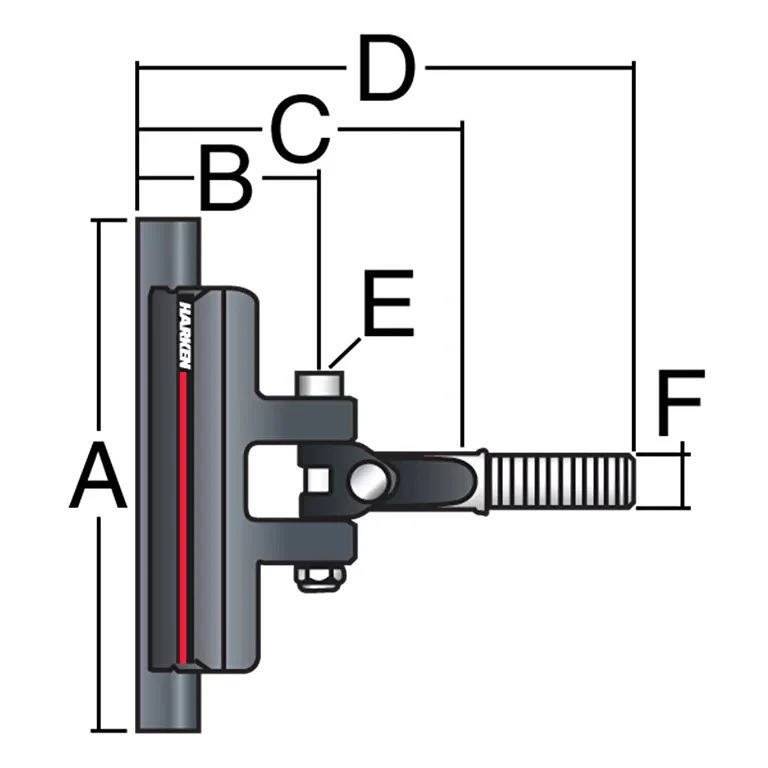

| A (mm) | 136 mm |
| A (in) | 5 3/8 in |
| B (mm) | 51 mm |
| B (in) | 2 in |
| C (mm) | 92 mm |
| C (in) | 3 5/8 in |
| D (mm) | 135 mm |
| D (in) | 5 5/16 in |
| E (mm) | 12 mm |
| E (in) | 1/2 in |
| F (mm) | 16 mm |
