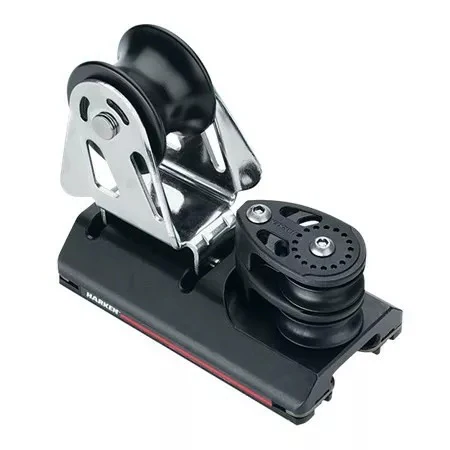

Harken MR 27mm 4:1 CB Genoa Lead Car w/Double Sheaves
Harken MR 27mm 4:1 CB Genoa Lead Car w/Double Sheaves
CB adjustable genoa lead cars feature recirculating Torlon ball bearings for easy adjustment under full sheet loads. Stainless steel sheave carriers pivot 60 degrees to accommodate changing lead angles. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Technical Description
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 132 mm |
| Length (in) | 5 3/16 in |
| Width (mm) | 70 mm |
| Width (in) | 2 3/4 in |
| Weight (g) | 718 g |
| Weight (oz) | 25.22 oz |
| Maximum working load (kg) | 1043 kg |
| Maximum working load (lb) | 2300 lb |
| Breaking load (lb) | 5000 lb |
| Breaking load (kg) | 2268 kg |
| Use with track/rail | R27 |
