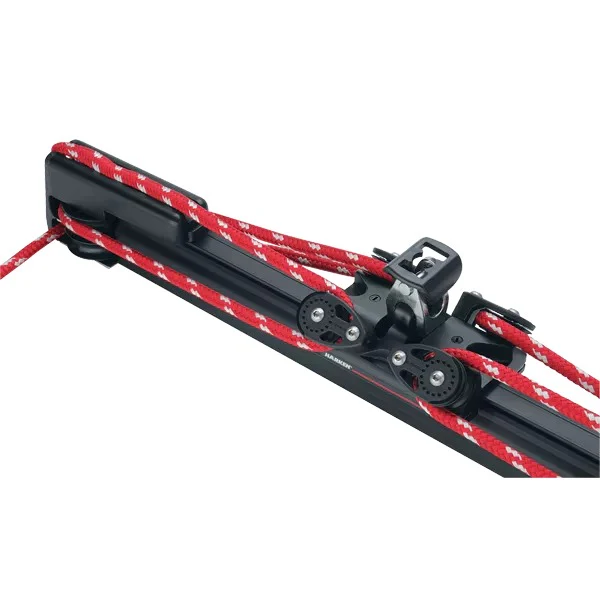

Harken MR 27mm High-beam Double Sheave End Controls w/Dead End (Pair)
Harken MR 27mm High-beam Double Sheave End Controls w/Dead End (Pair)
ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems. Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings. Use E2750HB double-sheave end controls for cabintop travelers with cars using 3:1 or 4:1 purchases. Contact Harken to order special length track with mounting holes for E2750HB end controls.
Technical Description
| Length (mm) | 108 mm |
| Length (in) | 4 1/4 in |
| Sheave Ø (mm) | 40 mm |
| Sheave Ø (in) | 1 9/16 in |
| Width (mm) | 40 mm |
| Width (in) | 1 9/16 in |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Maximum working load (kg) | 272 kg |
| Maximum working load (lb) | 600 lb |
| Breaking load (kg) | 544 kg |
| Breaking load (lb) | 1200 lb |
| Height above track (mm) | 25 mm |
| Height above track (in) | 1 in |
| Weight for pair (g) | 662 g |
| Weight for pair (oz) | 23.4 oz |
| Purchase | 3:1 / 4:1 |
