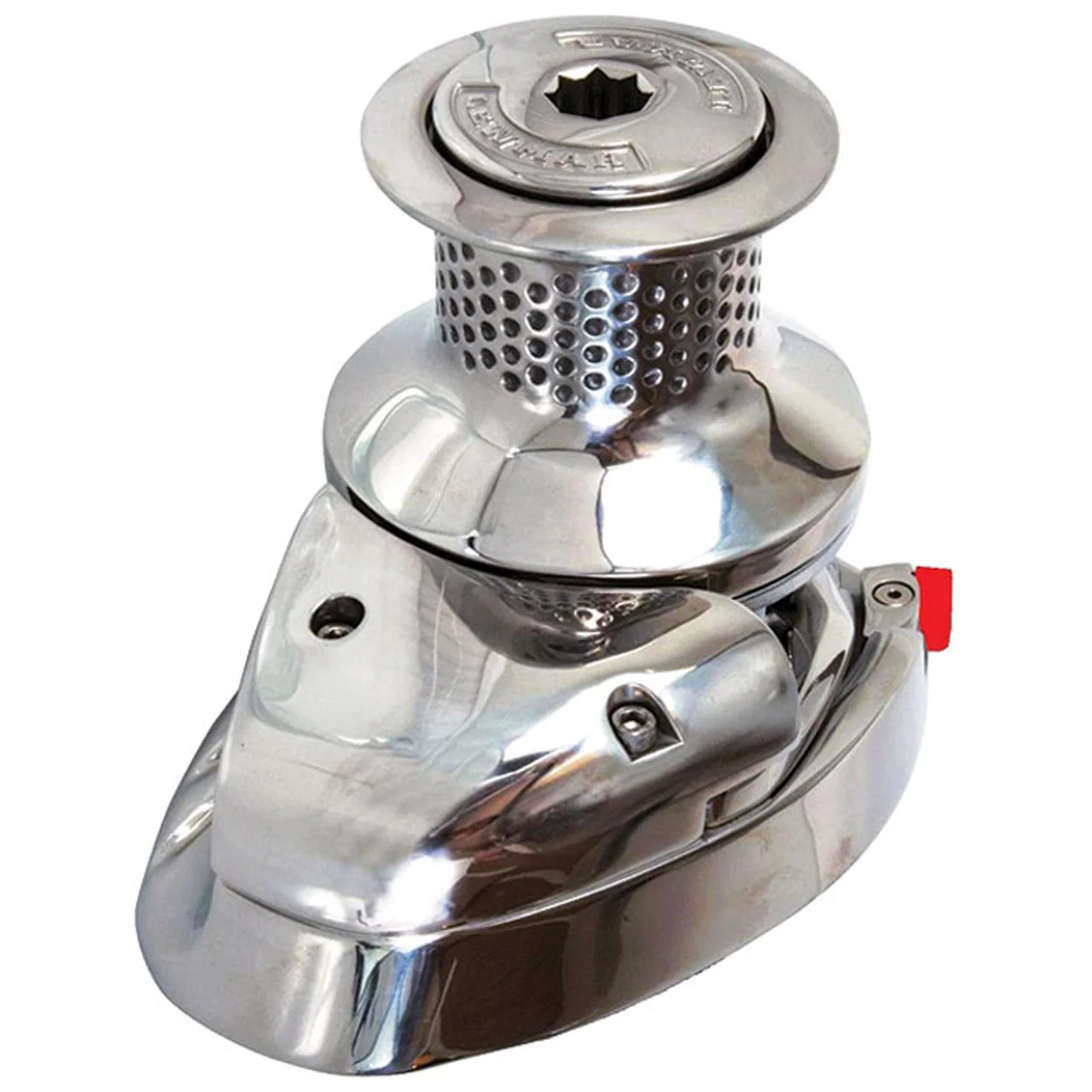

Lewmar V3 Gypsy/Drum Ff 24V 001 Kit
Please call us to confirm availability.
Manufacturer part #: 6672222198-142.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
Technical Description
Windlass V3 24V Complete Kit*
001 - 8mm DIN 766, 8mm ISO 4565
1000 Watts
2248 lb
1020 kg
535 lb
243 kg
98 ft/min
30 m/min
60 Amp
90 Amp
54 lb
24.5 kg
* All kits feature Fastfit™ motor gearboxes.
* Windlass Kit includes Deck unit, gypsy, Motor gearbox, rocker switch, circuit breaker and contactor.
Lewmar V3 Gypsy/Drum FF 24V 001 Kit
- Rope-chain gypsy.
- Manual chain release Free Fall).
- Highly reliable, light weight, high performance windlass.
- Optional manual override motor gearbox.
- Cone clutch for smooth, easy control.
- Wear and Abrasion Resistant Pattern Drum.
- Fall safe anchor lock.
- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.
- Emergency recovery kit available.
- Water resistant IP68 kits available.
- For boats up to 14m (48ft).
Lewmar V Windlasses Dimensions
Please call us to confirm availability.
Manufacturer part #: 6672222198-142.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
Technical Description
Windlass V3 24V Complete Kit*
001 - 8mm DIN 766, 8mm ISO 4565
1000 Watts
2248 lb
1020 kg
535 lb
243 kg
98 ft/min
30 m/min
60 Amp
90 Amp
54 lb
24.5 kg
* All kits feature Fastfit™ motor gearboxes.
* Windlass Kit includes Deck unit, gypsy, Motor gearbox, rocker switch, circuit breaker and contactor.
Lewmar V3 Gypsy/Drum FF 24V 001 Kit
- Rope-chain gypsy.
- Manual chain release Free Fall).
- Highly reliable, light weight, high performance windlass.
- Optional manual override motor gearbox.
- Cone clutch for smooth, easy control.
- Wear and Abrasion Resistant Pattern Drum.
- Fall safe anchor lock.
- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.
- Emergency recovery kit available.
- Water resistant IP68 kits available.
- For boats up to 14m (48ft).
Lewmar V Windlasses Dimensions
$3,285.00
Lewmar V3 Gypsy/Drum Ff 24V 001 Kit—
$3,285.00
Description
Please call us to confirm availability.
Manufacturer part #: 6672222198-142.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
Technical Description
Windlass V3 24V Complete Kit*
001 - 8mm DIN 766, 8mm ISO 4565
1000 Watts
2248 lb
1020 kg
535 lb
243 kg
98 ft/min
30 m/min
60 Amp
90 Amp
54 lb
24.5 kg
* All kits feature Fastfit™ motor gearboxes.
* Windlass Kit includes Deck unit, gypsy, Motor gearbox, rocker switch, circuit breaker and contactor.
Lewmar V3 Gypsy/Drum FF 24V 001 Kit
- Rope-chain gypsy.
- Manual chain release Free Fall).
- Highly reliable, light weight, high performance windlass.
- Optional manual override motor gearbox.
- Cone clutch for smooth, easy control.
- Wear and Abrasion Resistant Pattern Drum.
- Fall safe anchor lock.
- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.
- Emergency recovery kit available.
- Water resistant IP68 kits available.
- For boats up to 14m (48ft).
Lewmar V Windlasses Dimensions
