Selden Dead-end bracket for Code Zero halyard
Dead-end fitting for a Code Zero halyard.
Code Zero halyard with 2:1 purchase
To boost the performance when using a Code Zero , the halyard load must be higher than what normal halyard boxes and stoppers can handle. Therefore, a 2:1 purchase needs to be arranged by fixing the dead end of the halyard in the mast and letting it run through a block attached to the halyard swivel. Position on the mast must be specified by Seldén. In most cases Code Zero sails need to be hoisted lower than gennakers and spinnakers.
| Specification | 508-843-01R | 508-844-01R | 508-838-01R |
|---|---|---|---|
| SWL (Safe Working Load) | 1000 kg | 2200 kg | 3500 kg |
| Max Righting Moment (RM) @ 30° | 45 kNm | 180 kNm | 350 kNm |

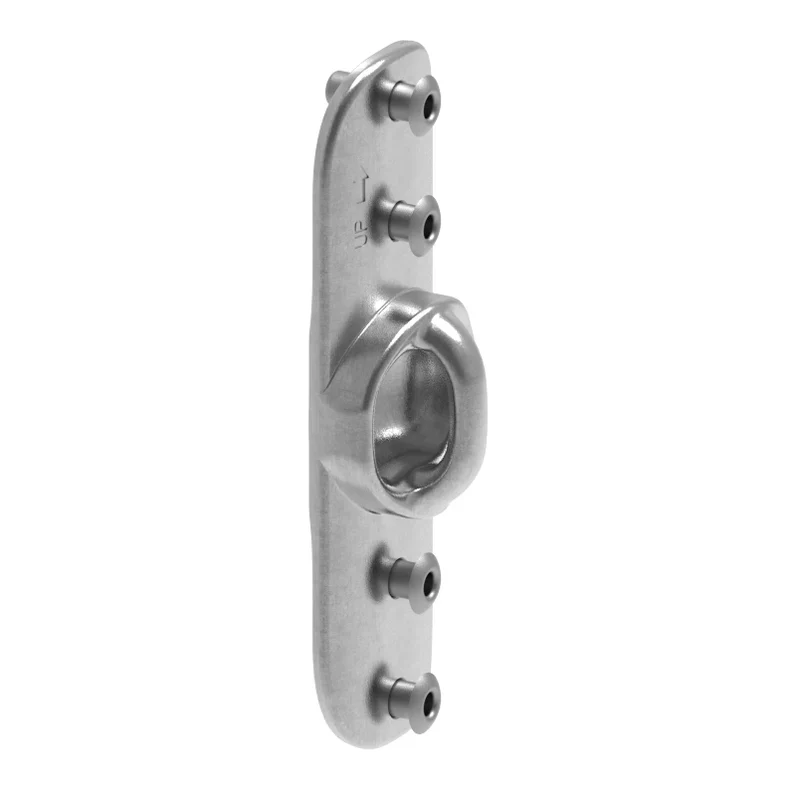

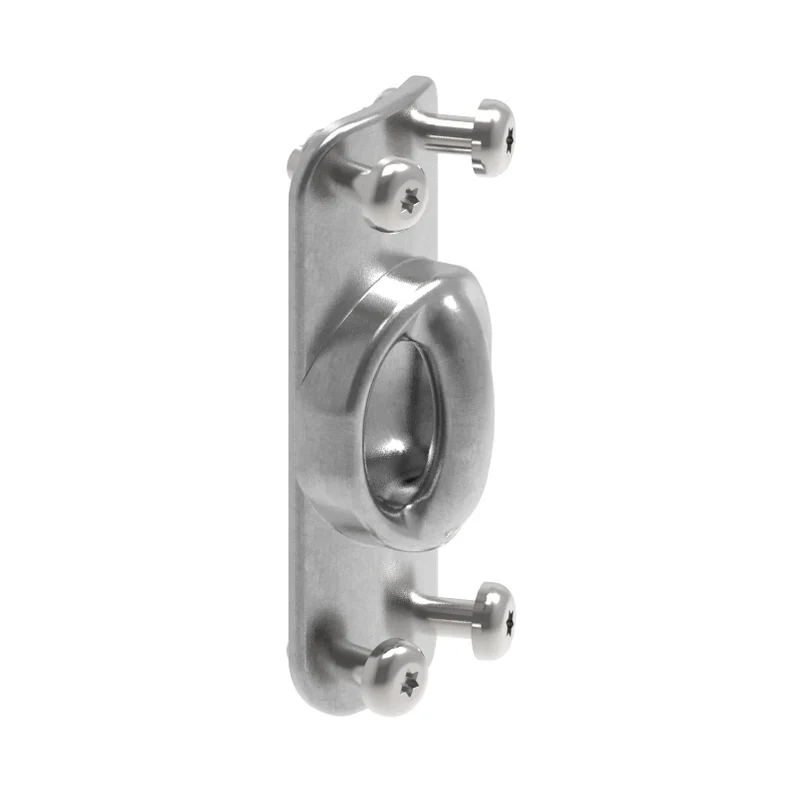

| Included Hardware | 3 Monel pop rivets Ø6.4 x 17.8 mm | 4 Monel pop rivets Ø6.4 x 17.8 mm | 4 M8 screws (8x25 mm) |
| Compatible Mast Sections | E177, E206, C137, C153, C156, C175, C180, C192, C193, C208, C211, C227, F170, F176, F185, F194, F199, F212, F217, F228 | E206, C225, C242, C245, C261, C264, C285, F234, F246, F252, F265, F272, F286, F291, F305 | C280, C321, C365, F324, F370, F406 |
