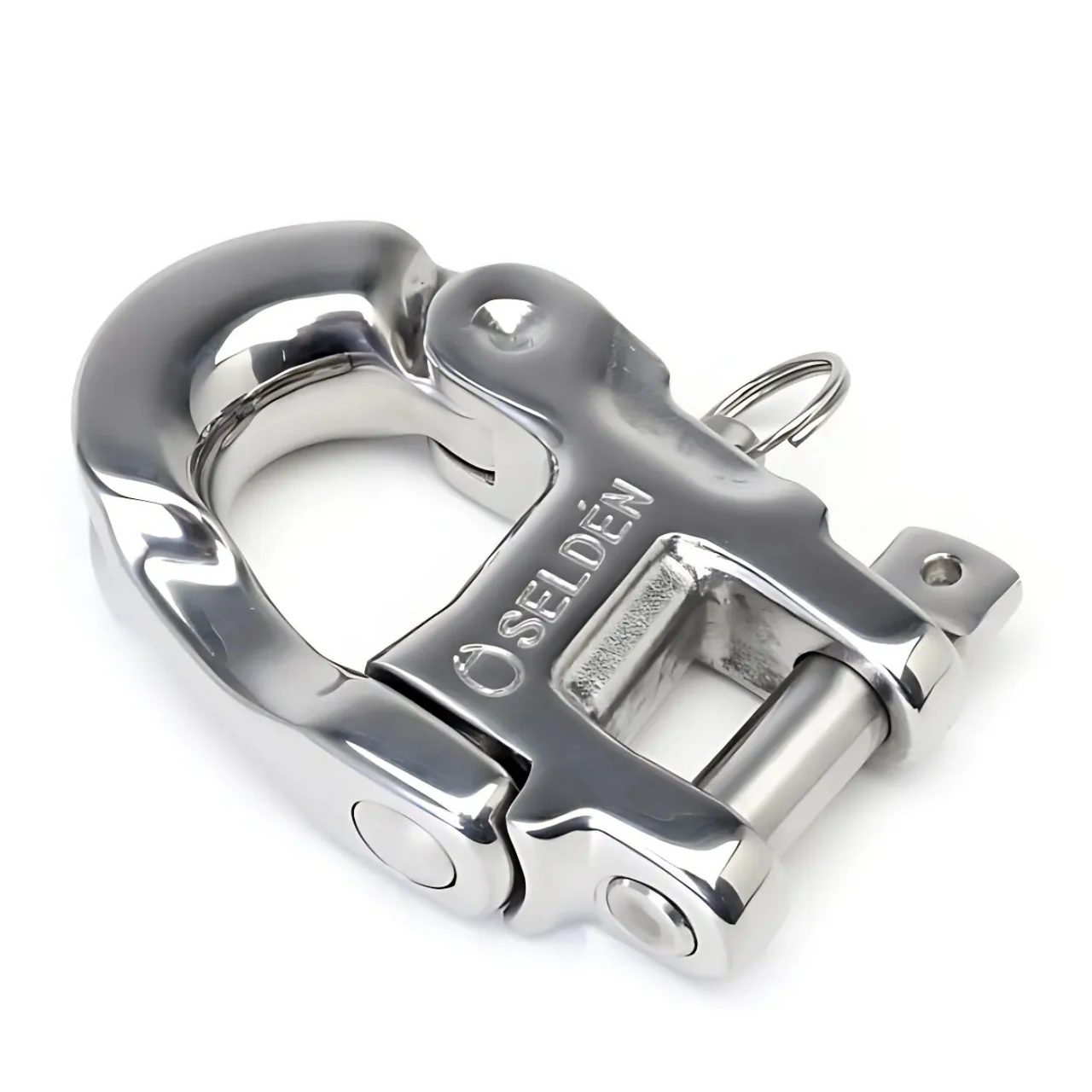

Selden Snap Shackle/Lead Adapter 100
Manufacturer part #: 307-438-01
| Features | American | Metric |
|---|---|---|
| Description | Adaptor 100 | |
| Weight | 18.7 oz | 530 g |
| Safe Working Load | 8818 lb | 4000 k |
| Breaking Load | 17637 lb | 8000 k |
| Pin Dia. | 1/2 in | 12 mm |
| Width | 1 2/3 in | 66 mm |
| Height | 3 15/16 in | 100 mm |
Manufacturer part #: 307-438-01
This snap shackle has a big, well rounded loop allowing the rope to slide with low friction. Compared to a regular snatch block, this shackle is lighter, easier to operate and lower cost. Typical applications are barber haulers for spinnaker and jibs but also to tension a Seldén CX with 2:1 purchase. This not only makes for better perform ance but it also makes it easier to connect the Seldén CX to a bowsprit, from the foredeck.
