Manufacturer part #: 31000109000

DescriptionAluminum Bowprit Kit

Features	American	Metric
Tube Ø	0.29 ft	90 mm
Total Length	6 ft 2 in	1900 mm
Min. Length Inside	3 ft 1 in	950 mm
Max. Length Outside	3 ft 1 in	950 mm
Boat Length	40 ft - 47 ft	12 m - 14.3 m
Max. Sail Area Asymmetric Spinnaker	1,100 ft2	102 m2
Max. Sail Area Gennaker & Code O *	700 ft2	65 m2

Note: With briddles.

Manufacturer part #: 31000109000

Sparcraft offers a new range of bowsprits. Easily removed from the deck these innovative spars can be fitted on sailing boats from 25 to 57 feet. They have been specially designed for Gennakers/ Code zero or asymmetric Spinnakers. The deck fixing device allows a free foredeck when arriving at the harbour or mooring. Tubes and hardware for bowsprits on quote after specifications.

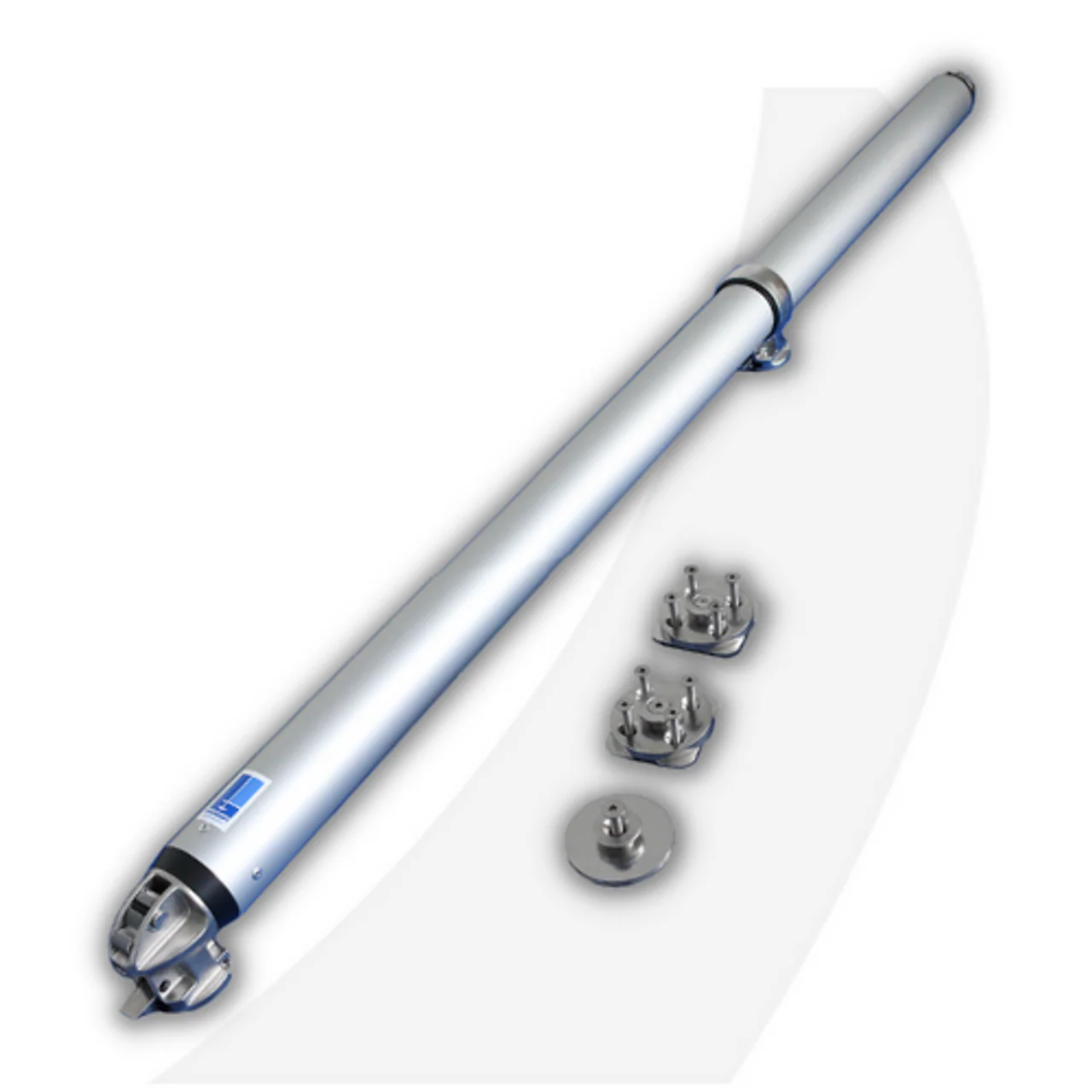

Complete kit including
This series of strut features our special socket-type end that automatically locks onto the toggle-pin mast fitting with an easy push on the strut. A simple release lever allows the strut to be quickly removed. This strut is especially valuable in competitive racing situations. The TMP mast fittings are required.

• Aluminium bowsprit with special end fittings, bridle attachment at the front and fixing block device at the back
• Adjustable Central fixing collar
• Deck fixing blocks
