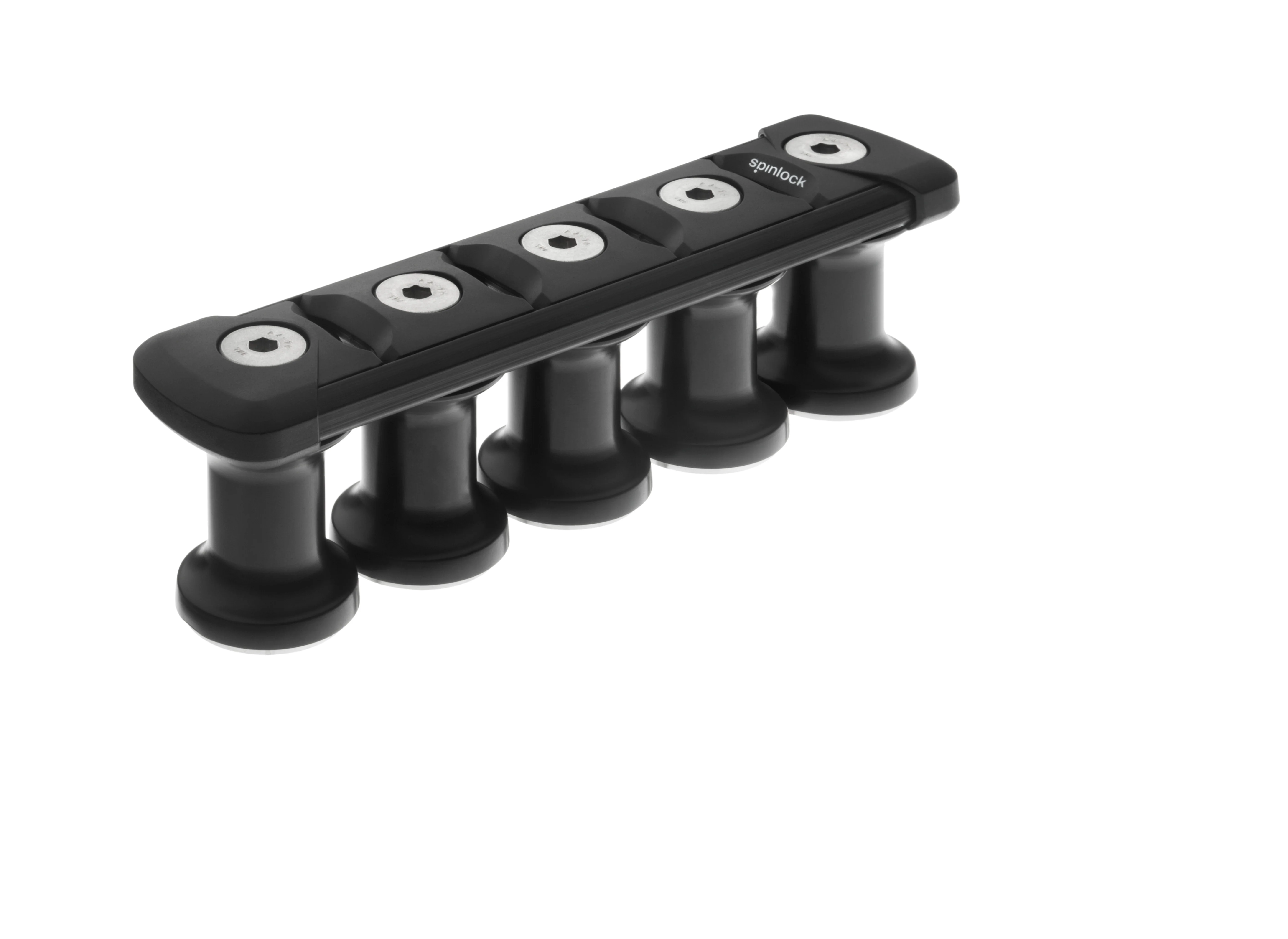

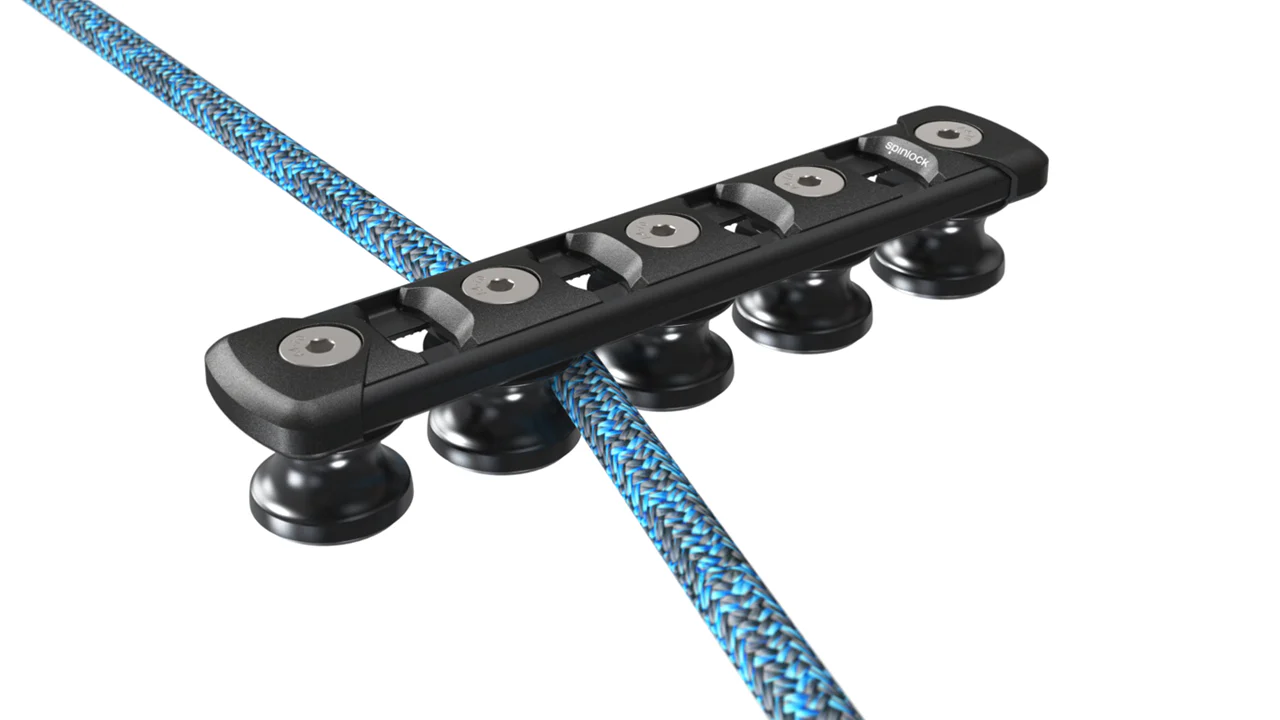

Spinlock TSR Organizer

• 20mm and 30mm diameter alloy sheaves
• 30mm sheaves for diverting large deflection angles and large diameter lines
• All rotating sheaves with plain bearings
• Alloy top rails
• Fixed Sheaves can be inserted in the organiser to further increase deflection loads

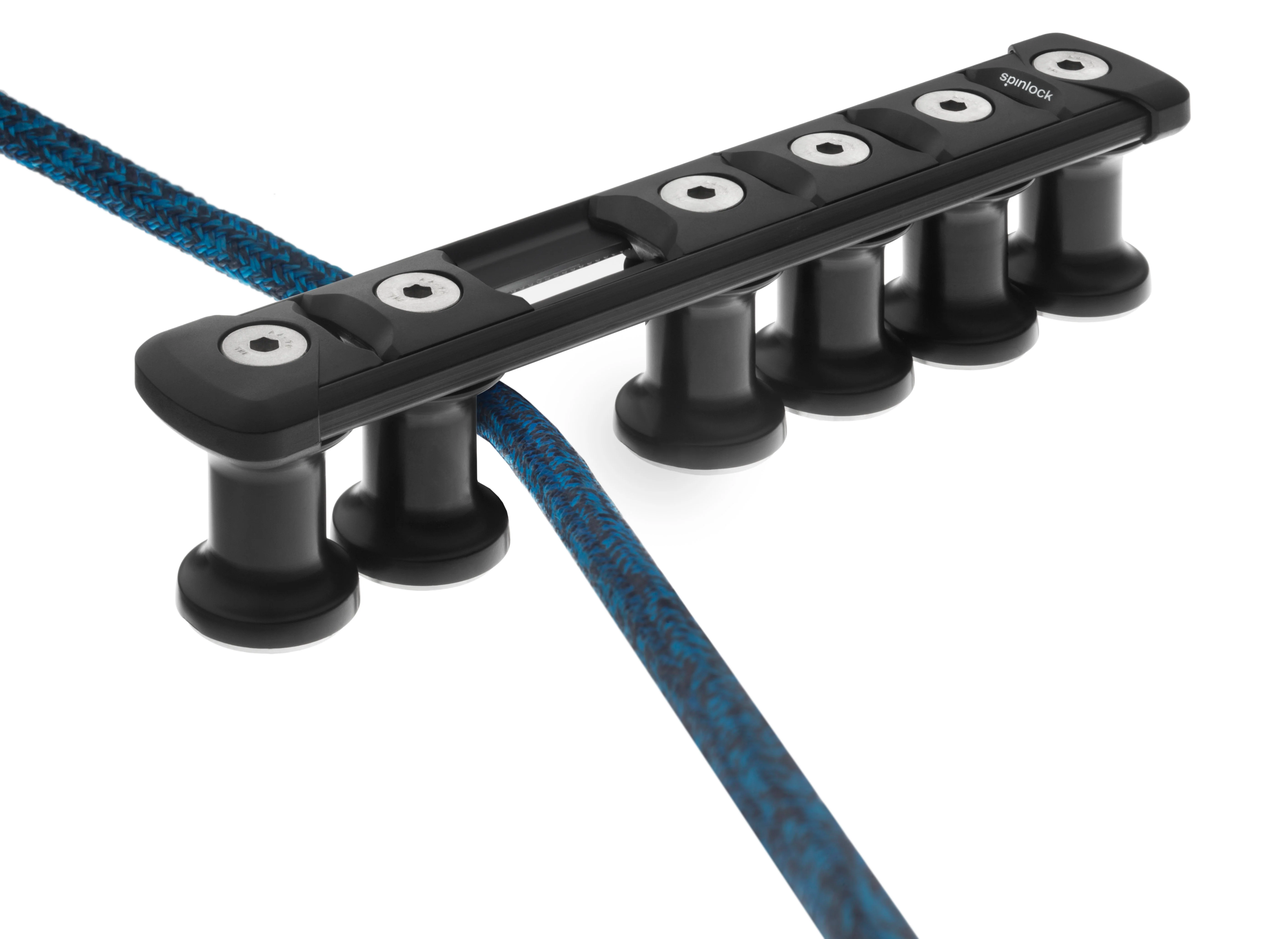

• Modular design and assembly – Sheaves can be moved to any spacing
• Sheave diameters can be optimised for each application
• Tulip shaped design reduces friction from vertical defection
• Low profile design
• Simple inserting and removal of endless lines

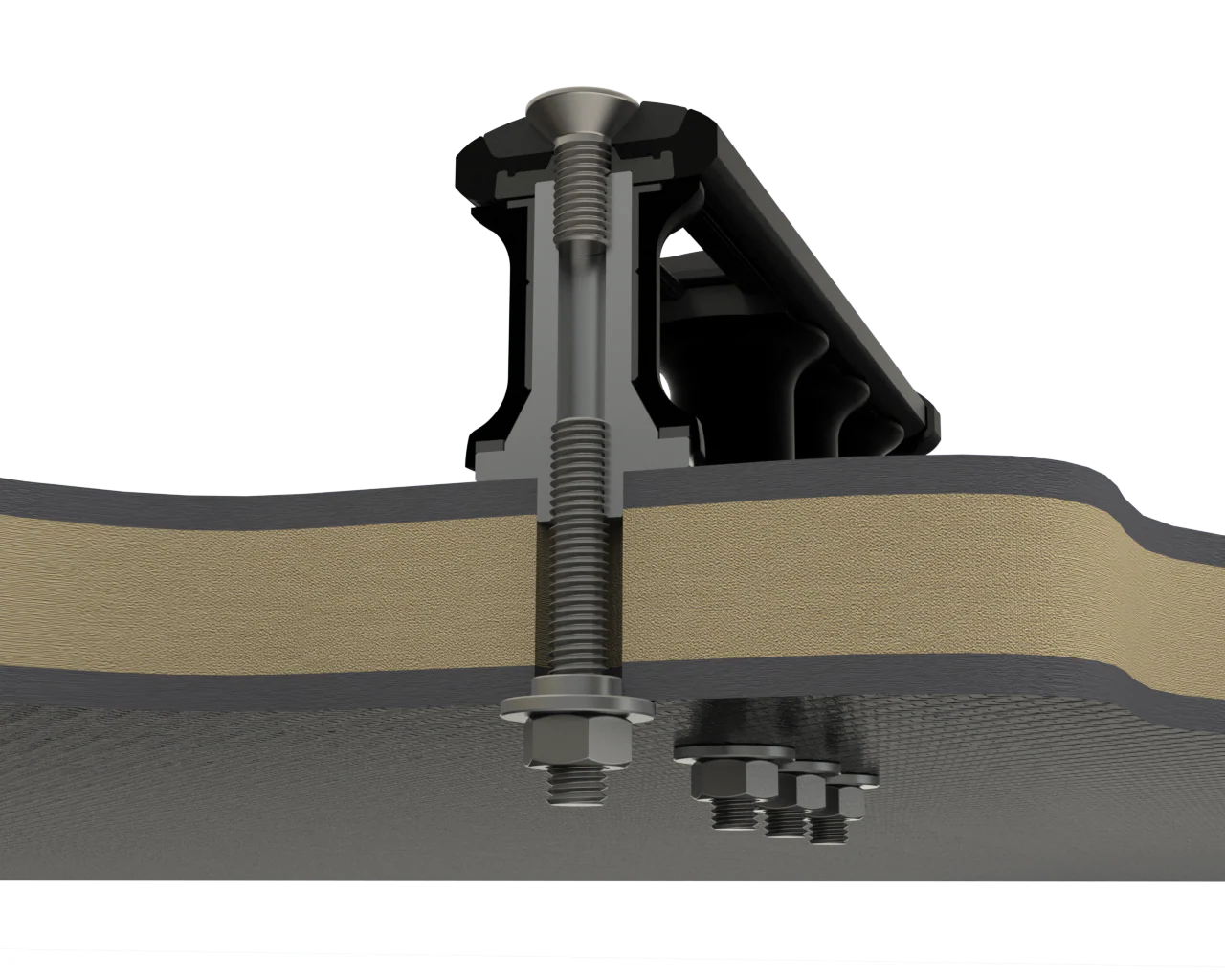

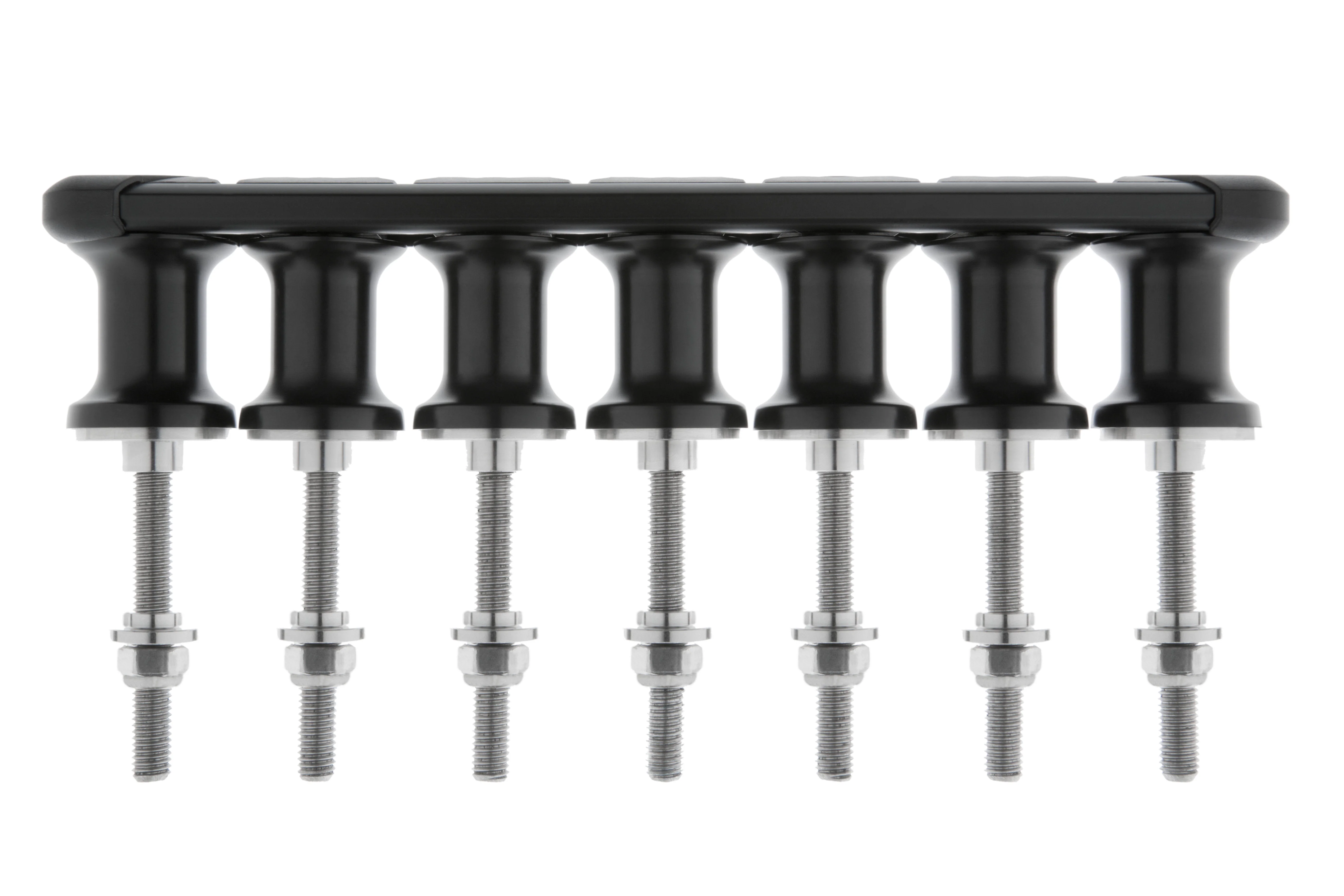

• Central shaft designed to spread load through laminate
• Titanium parts available to further reduce weight
• Custom sheave spacing available

Specifications

• Sheave Diameter/Type
• 25mm (1") composite

• SWL per Sheave
• 400kg (880lbs)

• Total SWL per unit
• No of sheaves x 200kg (440lbs)

• Line Diameter
• Up to 10mm (3/8")
