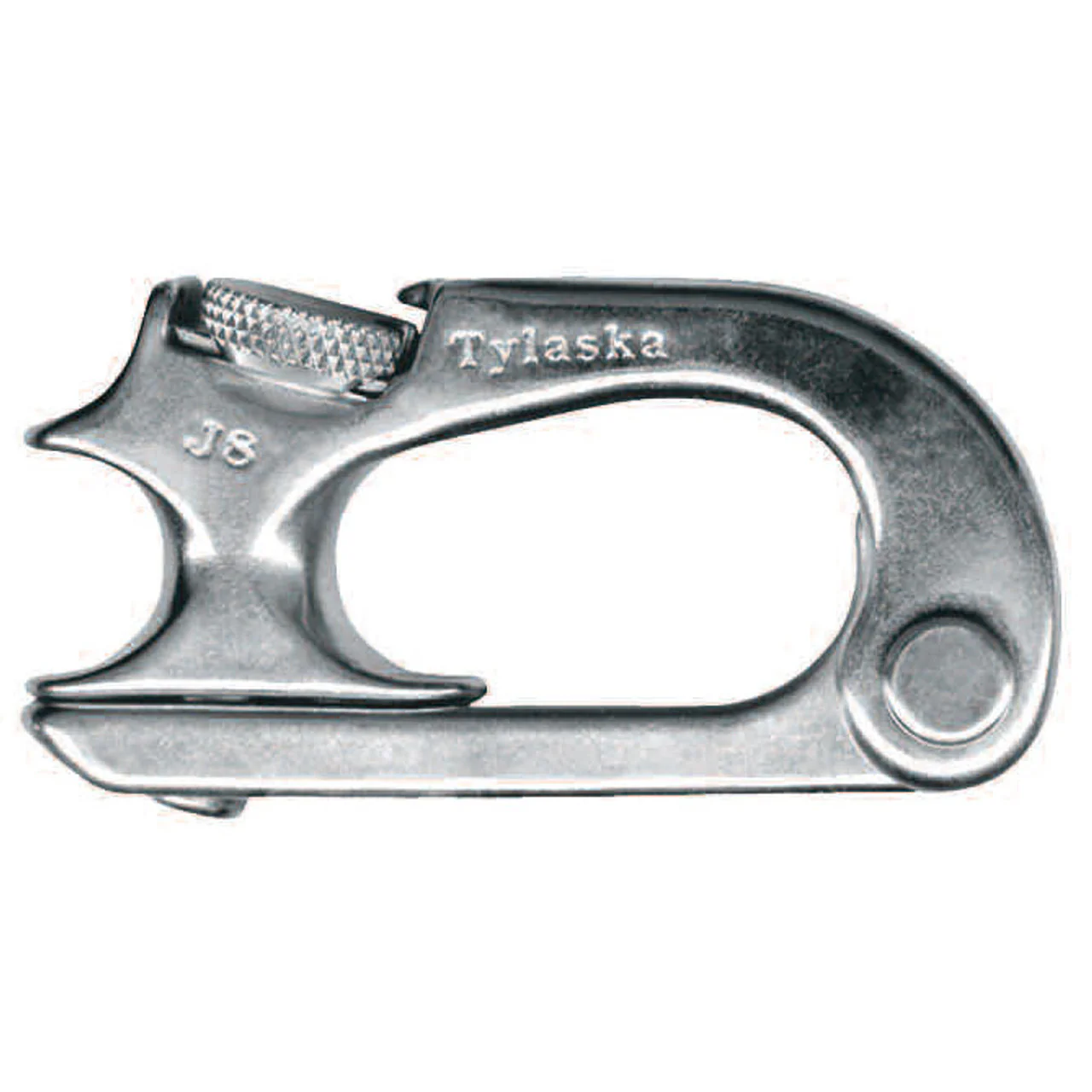

Tylaska J12 J-Lock shackle
Manufacturer part #: J2
Manufacturer part #: J2
Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. Unique patented double-locking plunger locks in two directions for the ultimate in flog-free operation.
Unlocked Position
J-Lock opens only when the knob is rotated so that its notch is aligned with the body's tab.
Llocked Position
The notch in the knob is turned away from the tab on the body and seated on the keyway shown below.
| Features | American | Metric | Description | J12 J-Lock Shackle |
|---|---|---|---|
| A | 2.4 in | 70 mm | |
| B | 1.2 in | 30.5 mm | |
| C | 0.50 in | 12.7 mm | |
| D | 0.68 in | 17.3 mm | |
| E | 1.2 in | 30.5 mm | |
| F | 0.4 in | 10.2 mm | |
| G | 0.49 in | 12.4 mm | |
| Line Size | 3/8 - 1/2 in | 10 - 12 mm | |
| Weight | 3 oz | 82 g | |
| Working Load | 6000 lb | 2727 kg | |
| Breaking Strength | 12000 lb | 5455 kg |
Manufacturer part #: J2
Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. Unique patented double-locking plunger locks in two directions for the ultimate in flog-free operation.
Unlocked Position
J-Lock opens only when the knob is rotated so that its notch is aligned with the body's tab.
Llocked Position
The notch in the knob is turned away from the tab on the body and seated on the keyway shown below.
Manufacturer part #: J2
Manufacturer part #: J2
Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. Unique patented double-locking plunger locks in two directions for the ultimate in flog-free operation.
Unlocked Position
J-Lock opens only when the knob is rotated so that its notch is aligned with the body's tab.
Llocked Position
The notch in the knob is turned away from the tab on the body and seated on the keyway shown below.
| Features | American | Metric | Description | J12 J-Lock Shackle |
|---|---|---|---|
| A | 2.4 in | 70 mm | |
| B | 1.2 in | 30.5 mm | |
| C | 0.50 in | 12.7 mm | |
| D | 0.68 in | 17.3 mm | |
| E | 1.2 in | 30.5 mm | |
| F | 0.4 in | 10.2 mm | |
| G | 0.49 in | 12.4 mm | |
| Line Size | 3/8 - 1/2 in | 10 - 12 mm | |
| Weight | 3 oz | 82 g | |
| Working Load | 6000 lb | 2727 kg | |
| Breaking Strength | 12000 lb | 5455 kg |
Manufacturer part #: J2
Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. Unique patented double-locking plunger locks in two directions for the ultimate in flog-free operation.
Unlocked Position
J-Lock opens only when the knob is rotated so that its notch is aligned with the body's tab.
Llocked Position
The notch in the knob is turned away from the tab on the body and seated on the keyway shown below.
$153.93
Tylaska J12 J-Lock shackle—
$153.93
