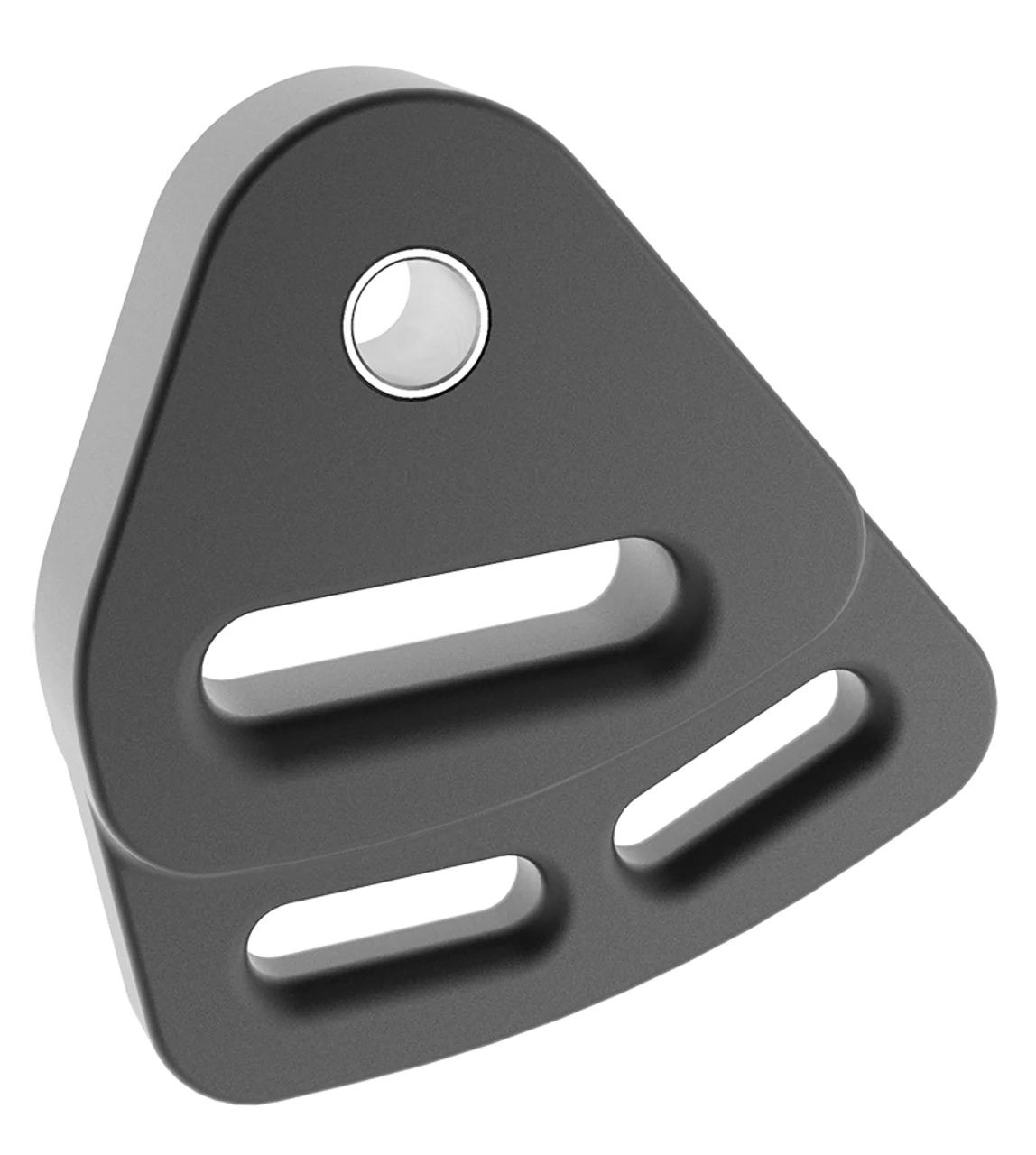

UBI Head Plate for FR87 Furler System
FRrd6hp Head Plate
Head Plates
| Model | A = Pin ø | B = Width Tape | C = Thickness | Weight | Used With | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | g | oz | ||
| FRrd6hp | 6 | 1/4 | 15 | 19/32 | 10 | 3/8 | 62 | 2 | FR87 |
| FRrd8hp | 8 | 5/16 | 25 | 1 | 10 | 3/8 | 80 | 3 | FR100 |
| FRrd10hp | 10 | 3/8 | 25 | 1 | 15 | 19/32 | 147 | 5 | FR125 |
| FRrd12hp | 12 | 1/3 | 30 | 1 3/16 | 18 | 11/16 | 240 | 8 | FR150 |
| FRrd14hp | 14 | 9/16 | 40 | 1 9/16 | 20 | 25/32 | 310 | 11 | FR200 |
| FRrd16hp | 16 | 5/8 | 40 | 1 9/16 | 25 | 1 | 482 | 1 | FR250 |
FRrd6hp Head Plate
Head Plates
| Model | A = Pin ø | B = Width Tape | C = Thickness | Weight | Used With | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | g | oz | ||
| FRrd6hp | 6 | 1/4 | 15 | 19/32 | 10 | 3/8 | 62 | 2 | FR87 |
| FRrd8hp | 8 | 5/16 | 25 | 1 | 10 | 3/8 | 80 | 3 | FR100 |
| FRrd10hp | 10 | 3/8 | 25 | 1 | 15 | 19/32 | 147 | 5 | FR125 |
| FRrd12hp | 12 | 1/3 | 30 | 1 3/16 | 18 | 11/16 | 240 | 8 | FR150 |
| FRrd14hp | 14 | 9/16 | 40 | 1 9/16 | 20 | 25/32 | 310 | 11 | FR200 |
| FRrd16hp | 16 | 5/8 | 40 | 1 9/16 | 25 | 1 | 482 | 1 | FR250 |
$157.70
UBI Head Plate for FR87 Furler System—
$157.70
Description
FRrd6hp Head Plate
Head Plates
| Model | A = Pin ø | B = Width Tape | C = Thickness | Weight | Used With | ||||
|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | g | oz | ||
| FRrd6hp | 6 | 1/4 | 15 | 19/32 | 10 | 3/8 | 62 | 2 | FR87 |
| FRrd8hp | 8 | 5/16 | 25 | 1 | 10 | 3/8 | 80 | 3 | FR100 |
| FRrd10hp | 10 | 3/8 | 25 | 1 | 15 | 19/32 | 147 | 5 | FR125 |
| FRrd12hp | 12 | 1/3 | 30 | 1 3/16 | 18 | 11/16 | 240 | 8 | FR150 |
| FRrd14hp | 14 | 9/16 | 40 | 1 9/16 | 20 | 25/32 | 310 | 11 | FR200 |
| FRrd16hp | 16 | 5/8 | 40 | 1 9/16 | 25 | 1 | 482 | 1 | FR250 |
