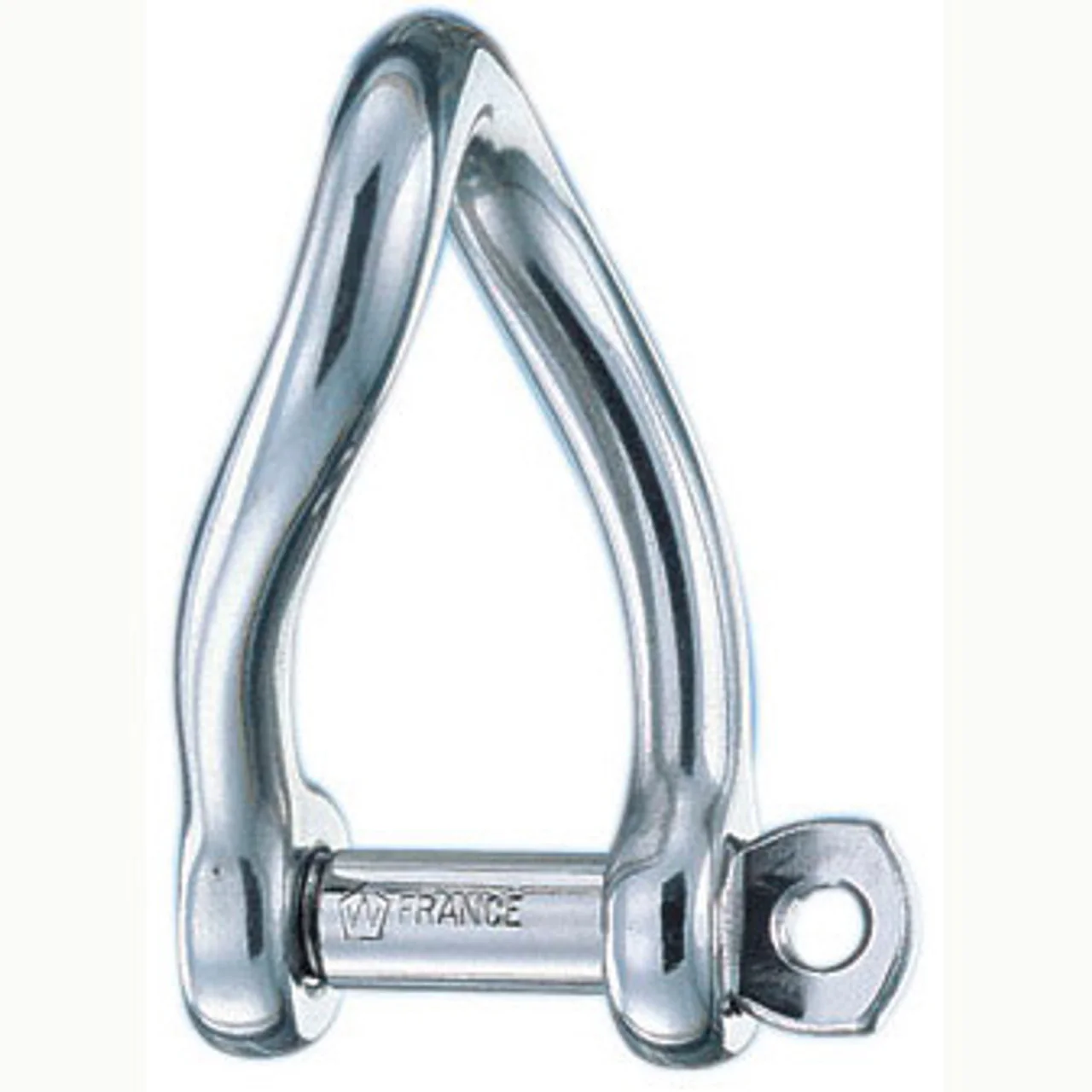

Wichard 1/4 Self Locking Twisted Shackle
Manufacturer part #: 1223
Manufacturer part #: 1223
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
Perfect for application where a 90Ā° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Material
Grade 316L stainless steel
| Features | American | Metric | |
|---|---|---|---|
| Description | Self Locking Twisted Shackle | ||
| A | 1 3/16 in | 30 mm | |
| B | 31/64 in | 12 mm | |
| Ć | 1/4 in | 6 mm | |
| Working Load | 1322 lb | 600 kg | |
| Breaking Load | 3306 lb | 1500 kg | |
| Weight | 0.95 oz | 27 g | |
Manufacturer part #: 1223
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
Manufacturer part #: 1223
Manufacturer part #: 1223
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
Perfect for application where a 90Ā° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Material
Grade 316L stainless steel
| Features | American | Metric | |
|---|---|---|---|
| Description | Self Locking Twisted Shackle | ||
| A | 1 3/16 in | 30 mm | |
| B | 31/64 in | 12 mm | |
| Ć | 1/4 in | 6 mm | |
| Working Load | 1322 lb | 600 kg | |
| Breaking Load | 3306 lb | 1500 kg | |
| Weight | 0.95 oz | 27 g | |
Manufacturer part #: 1223
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
$23.80
Wichard 1/4 Self Locking Twisted Shackleā
$23.80
Description
Manufacturer part #: 1223
Manufacturer part #: 1223
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
Perfect for application where a 90Ā° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases Material
Grade 316L stainless steel
| Features | American | Metric | |
|---|---|---|---|
| Description | Self Locking Twisted Shackle | ||
| A | 1 3/16 in | 30 mm | |
| B | 31/64 in | 12 mm | |
| Ć | 1/4 in | 6 mm | |
| Working Load | 1322 lb | 600 kg | |
| Breaking Load | 3306 lb | 1500 kg | |
| Weight | 0.95 oz | 27 g | |
Manufacturer part #: 1223
Self-locking long shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations, no risks of loose due to vibrations, outstanding working and breaking loads
Applications
