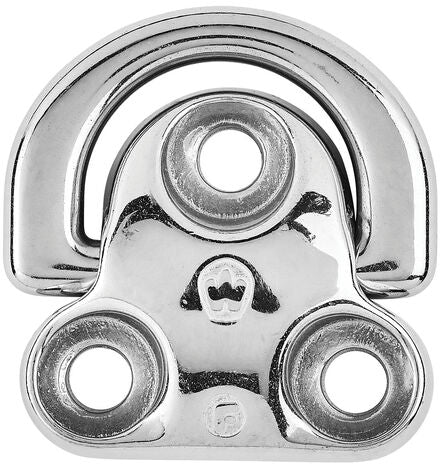

Wichard 13/32 Folding Padeye
Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether etc...)
Fully dropforged product with outstanding working and breaking loads regardless the angle of the load
Modern and optimized design to suit aesthetics of modern boats
They can be fold down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations
Modern design
Â
| Specification | Metric | Imperial |
|---|---|---|
| Material | 17.4 pH Stainless Steel / 316L Grade | 17.4 pH Stainless Steel / 316L Grade |
| Working Load | 4080 kg | 8990 lb |
| Breaking Load | 9000 kg | 19840 lb |
| Weight | 355 g | 0.783 lb |
| A | 75 mm | 2 61/64" |
| B | 45 mm | 1 49/64" |
| C | 25 mm | 63/64" |
| D | 80 mm | 3 5/32" |
| Pin Diameter (d) | 10 mm | 25/64" |
| Diameter (D) | 10 mm | 25/64" |
| E | 68 mm | 2 43/64" |
| F | 45 mm | 1 49/64" |
Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether etc...)
Fully dropforged product with outstanding working and breaking loads regardless the angle of the load
Modern and optimized design to suit aesthetics of modern boats
They can be fold down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations
Modern design
Â
| Specification | Metric | Imperial |
|---|---|---|
| Material | 17.4 pH Stainless Steel / 316L Grade | 17.4 pH Stainless Steel / 316L Grade |
| Working Load | 4080 kg | 8990 lb |
| Breaking Load | 9000 kg | 19840 lb |
| Weight | 355 g | 0.783 lb |
| A | 75 mm | 2 61/64" |
| B | 45 mm | 1 49/64" |
| C | 25 mm | 63/64" |
| D | 80 mm | 3 5/32" |
| Pin Diameter (d) | 10 mm | 25/64" |
| Diameter (D) | 10 mm | 25/64" |
| E | 68 mm | 2 43/64" |
| F | 45 mm | 1 49/64" |
Original: $127.95
-70%$127.95
$38.38Description
Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether etc...)
Fully dropforged product with outstanding working and breaking loads regardless the angle of the load
Modern and optimized design to suit aesthetics of modern boats
They can be fold down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations
Modern design
Â
| Specification | Metric | Imperial |
|---|---|---|
| Material | 17.4 pH Stainless Steel / 316L Grade | 17.4 pH Stainless Steel / 316L Grade |
| Working Load | 4080 kg | 8990 lb |
| Breaking Load | 9000 kg | 19840 lb |
| Weight | 355 g | 0.783 lb |
| A | 75 mm | 2 61/64" |
| B | 45 mm | 1 49/64" |
| C | 25 mm | 63/64" |
| D | 80 mm | 3 5/32" |
| Pin Diameter (d) | 10 mm | 25/64" |
| Diameter (D) | 10 mm | 25/64" |
| E | 68 mm | 2 43/64" |
| F | 45 mm | 1 49/64" |
