Manufacturer part #: 2327

	Features	American	Metric

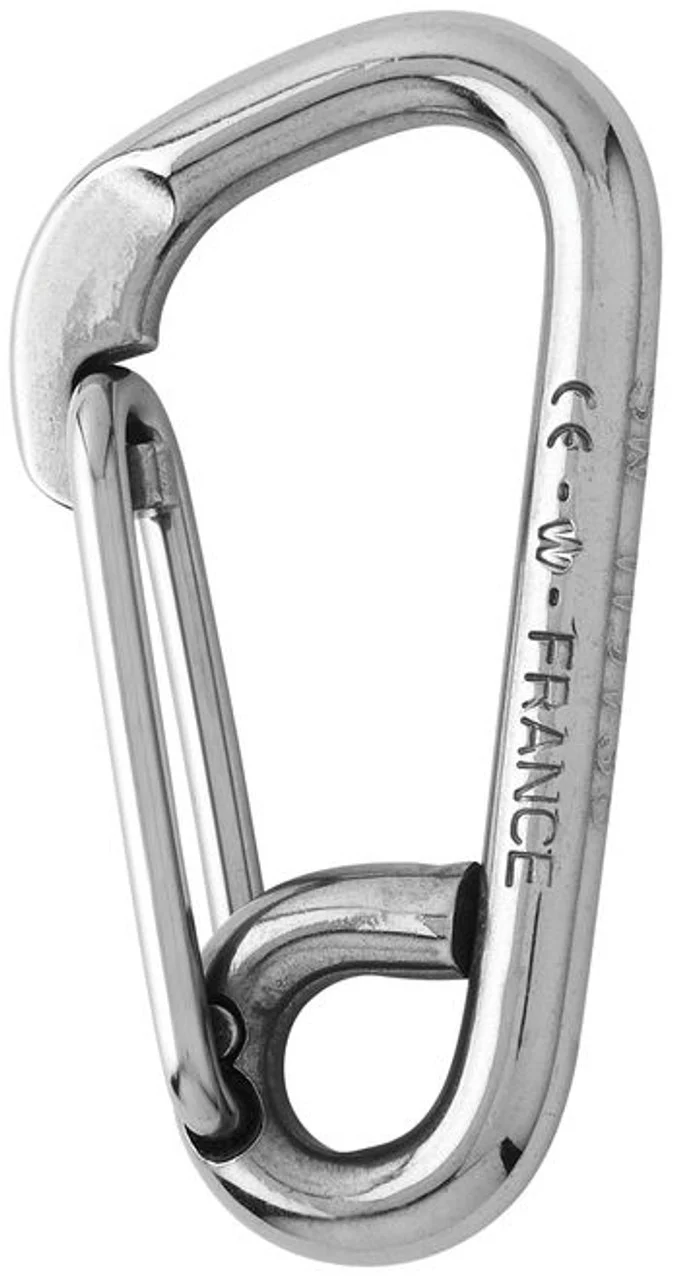

	Description	Carbine Hooks
	Length	4 11/16 in	120 mm
	A	15/16 in	24 mm
	B	5/8 in	16 mm
	Ø	1/2 in	12 mm
	Weight	8.25 oz	234 g
	Working Load Limit	1980 lb	900 kg
	Working Load	3175 lb	1440 kg
	Breaking Load	9920 lb	4500 kg

Manufacturer part #: 2327

• Grade 316L stainless steel carbine hooks
• Symmetrical shape
• With eye to attach a webbing or a splicing

Applications

• For fastening applications

Material

• Grade 316L stainless steel

CE Marking
This Wichard product can be used as lifting accessories and as such bear the CE marking (awarded under the auto-certification scheme in accordance with the Machines Directive 2006/42).

Each product displays the following information:

• Working Load Limit (WLL)
• CE marking, product origin, manufacturer's logo
• Materials
• Manufacturing batch serial number

Working Load (WL): for nautical applications
Working Load Limit (WLL): for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5.

Manufacturer part #: 2327
