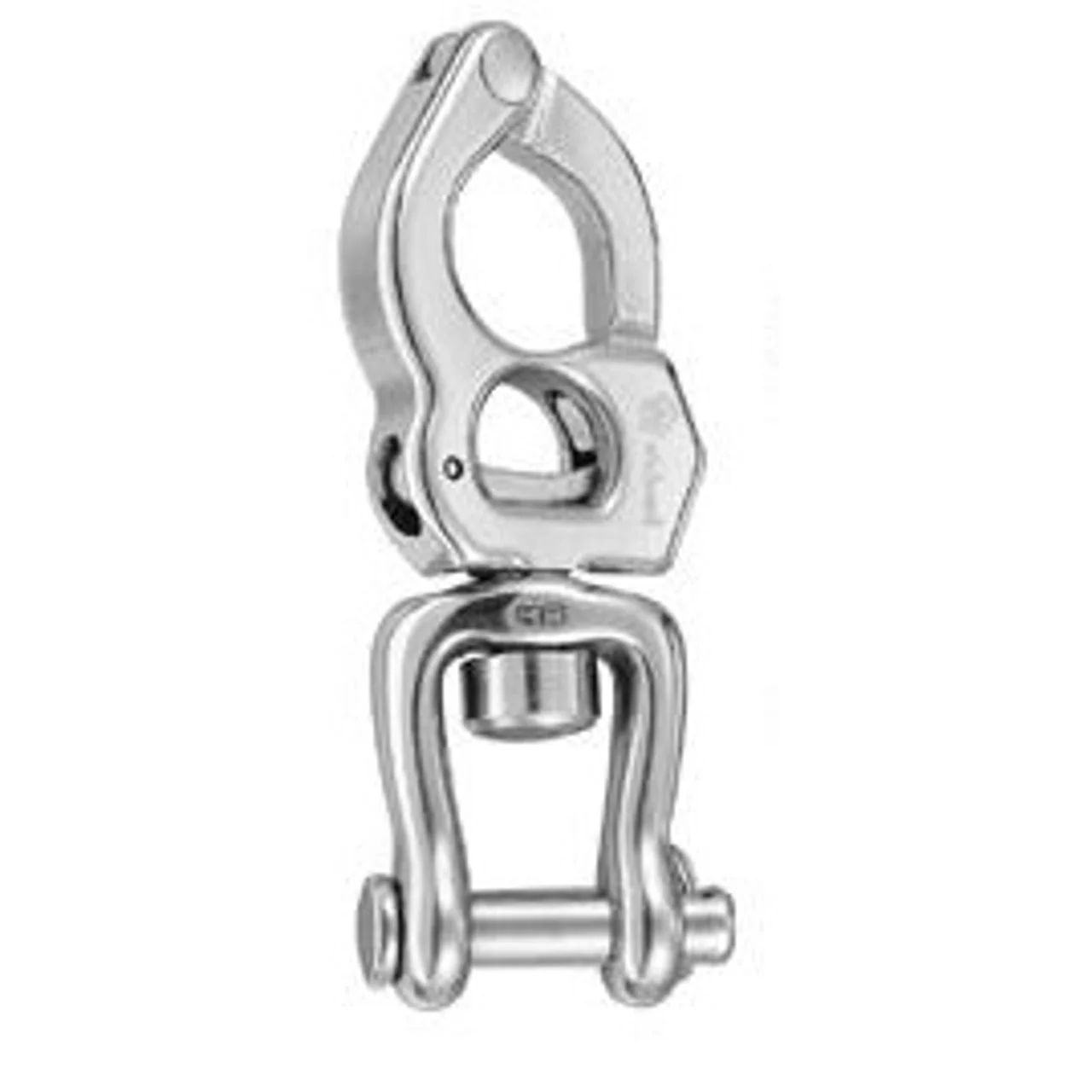

Wichard 4 1/8 Trigger Snap Swivel Clevis
Manufacturer part #: 2855
Manufacturer part #: 2855
HR forged trigger snap shackle with swivel shackle The opening is made by hand (low load) or by using a release fid Allows to attach a non spliced sheet Free rotation of the snap shackle thanks to the swivel Outstanding working and breaking loads Applications
Trigger snap shackle requiring no splicing sheet Many fastening applications: furling systems, deck fitting, etc Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Trigger Snap Shackle Swivel Shackle | ||
| Length | 4 1/8 in | 105 mm | |
| A | 7/8 in | 22 mm | |
| B | 17/32 in | 13 mm | |
| C | 7/16 in | 11 mm | |
| D | 9/32 in | 7 mm | |
| Weight | 6.49 oz | 184 gr | |
| Working Load | 3527 in | 1600 kg | |
| Breaking Load | 8800 lb | 4000 kg | |
Manufacturer part #: 2855
Manufacturer part #: 2855
Manufacturer part #: 2855
HR forged trigger snap shackle with swivel shackle The opening is made by hand (low load) or by using a release fid Allows to attach a non spliced sheet Free rotation of the snap shackle thanks to the swivel Outstanding working and breaking loads Applications
Trigger snap shackle requiring no splicing sheet Many fastening applications: furling systems, deck fitting, etc Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Trigger Snap Shackle Swivel Shackle | ||
| Length | 4 1/8 in | 105 mm | |
| A | 7/8 in | 22 mm | |
| B | 17/32 in | 13 mm | |
| C | 7/16 in | 11 mm | |
| D | 9/32 in | 7 mm | |
| Weight | 6.49 oz | 184 gr | |
| Working Load | 3527 in | 1600 kg | |
| Breaking Load | 8800 lb | 4000 kg | |
Manufacturer part #: 2855
$325.00
Wichard 4 1/8 Trigger Snap Swivel Clevis—
$325.00
Description
Manufacturer part #: 2855
Manufacturer part #: 2855
HR forged trigger snap shackle with swivel shackle The opening is made by hand (low load) or by using a release fid Allows to attach a non spliced sheet Free rotation of the snap shackle thanks to the swivel Outstanding working and breaking loads Applications
Trigger snap shackle requiring no splicing sheet Many fastening applications: furling systems, deck fitting, etc Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Trigger Snap Shackle Swivel Shackle | ||
| Length | 4 1/8 in | 105 mm | |
| A | 7/8 in | 22 mm | |
| B | 17/32 in | 13 mm | |
| C | 7/16 in | 11 mm | |
| D | 9/32 in | 7 mm | |
| Weight | 6.49 oz | 184 gr | |
| Working Load | 3527 in | 1600 kg | |
| Breaking Load | 8800 lb | 4000 kg | |
Manufacturer part #: 2855
