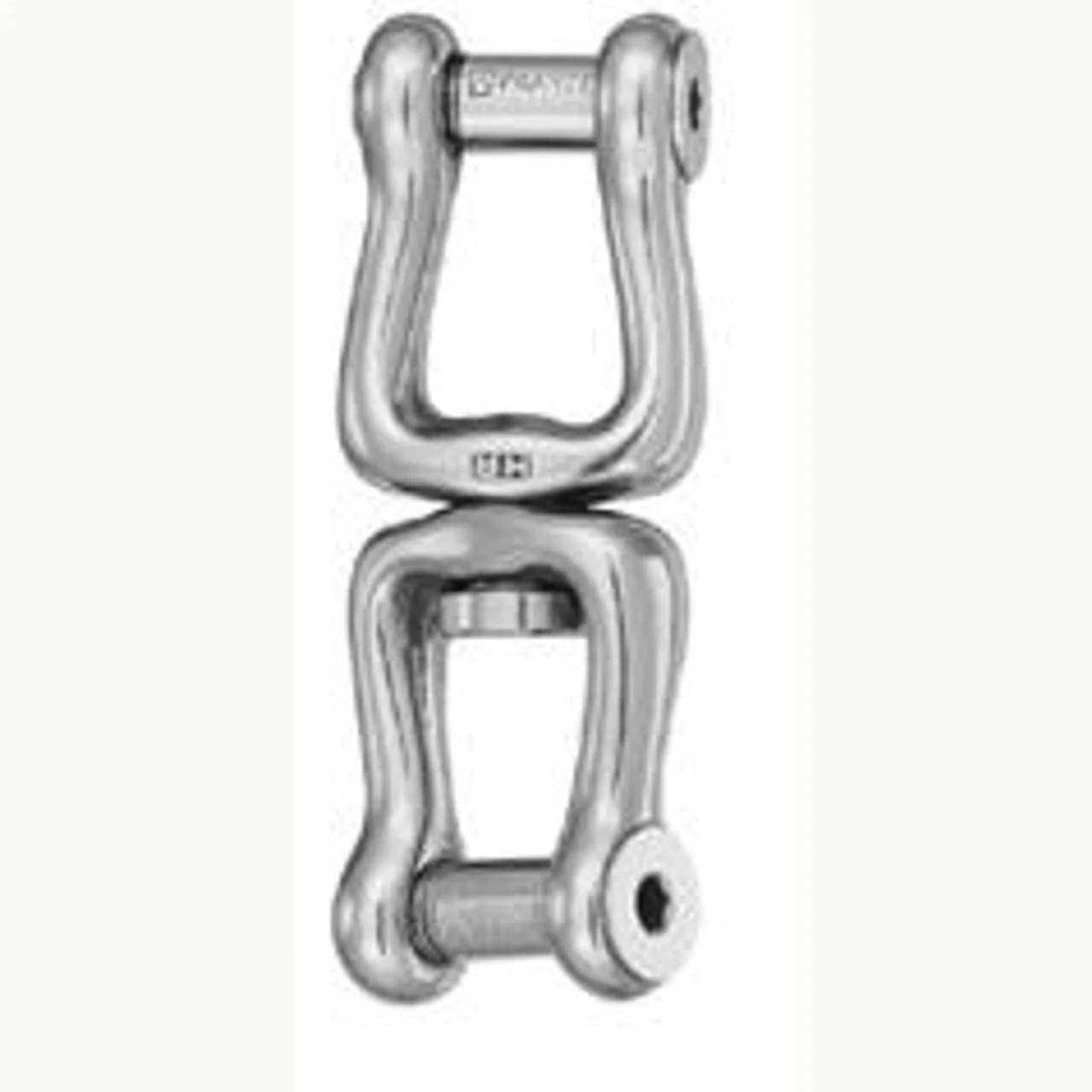

Wichard 5/16 Allen Head Swivel
Manufacturer part #: 2363
Manufacturer part #: 2363
HR forged swivel (17.4 Ph) with two openings; low clutter (allen head pin). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation, for webbing application.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Allen Head Swivel | ||
| Length | 3 9/64 in | 80 mm | |
| A | 13/16 in | 20 mm | |
| B | 11/16 in | 17 mm | |
| C | 7/16 in | 11 mm | |
| D Ø | 5/16 in | 8 mm | |
| Weight | 3.49 oz | 99 g | |
| Working Load | 3174 lb | 1440 kg | |
| Breaking Load | 6172 lb | 2800 kg | |
Manufacturer part #: 2363
HR forged swivel (17.4 Ph) with two openings; low clutter (allen head pin). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation, for webbing application.
Material
Manufacturer part #: 2363
Manufacturer part #: 2363
HR forged swivel (17.4 Ph) with two openings; low clutter (allen head pin). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation, for webbing application.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Allen Head Swivel | ||
| Length | 3 9/64 in | 80 mm | |
| A | 13/16 in | 20 mm | |
| B | 11/16 in | 17 mm | |
| C | 7/16 in | 11 mm | |
| D Ø | 5/16 in | 8 mm | |
| Weight | 3.49 oz | 99 g | |
| Working Load | 3174 lb | 1440 kg | |
| Breaking Load | 6172 lb | 2800 kg | |
Manufacturer part #: 2363
HR forged swivel (17.4 Ph) with two openings; low clutter (allen head pin). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation, for webbing application.
Material
