Manufacturer part #: 2345

	Features	American	Metric
	Description	Delta Hook
	Length	3 5/32 in	80 mm
	A	17/32 in	13 mm
	B	1 9/16 in	40 mm
	Ø	5/16 in	8 mm
	Weight	2.64 oz	75 g
	Working Load Limit	530 lb	240 kg
	Working Load	1587 lb	720 kg
	Breaking Load	2650 lb	1200 kg

Manufacturer part #: 2345

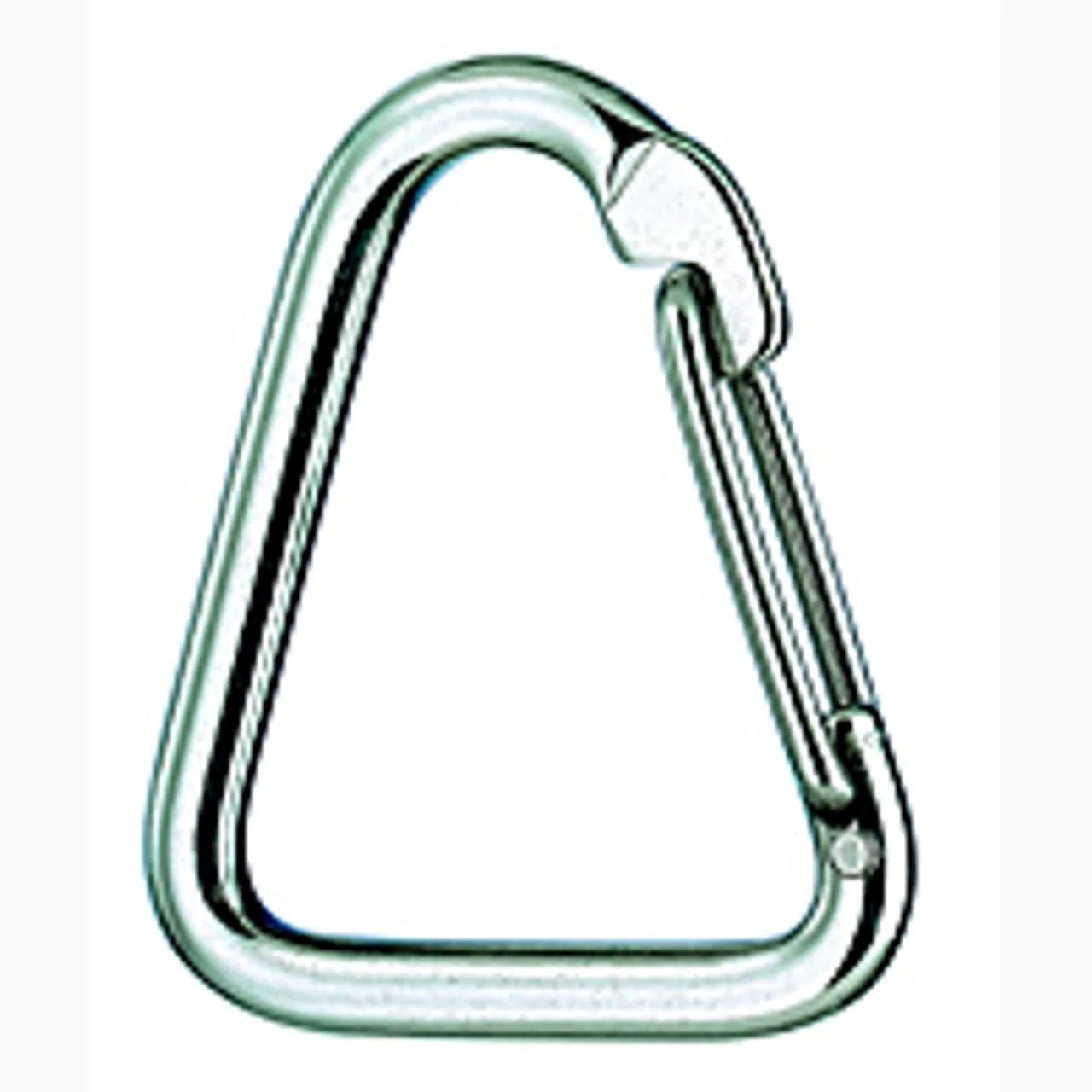

Forged delta hook

Designed to be equipped with a webbing

Applications

Applications requiring the use of a webbingn (ex: guard line)

Material

Grade 316L stainless steel

CE Marking
This Wichard product can be used as lifting accessories and as such bear the CE marking (awarded under the auto-certification scheme in accordance with the Machines Directive 2006/42).

Each product displays the following information:

Working Load Limit (WLL)

CE marking, product origin, manufacturer's logo

Materials

Manufacturing batch serial number

Working Load (WL): for nautical applications
Working Load Limit (WLL): for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5.
Material and conformity certificates are available on demand.
