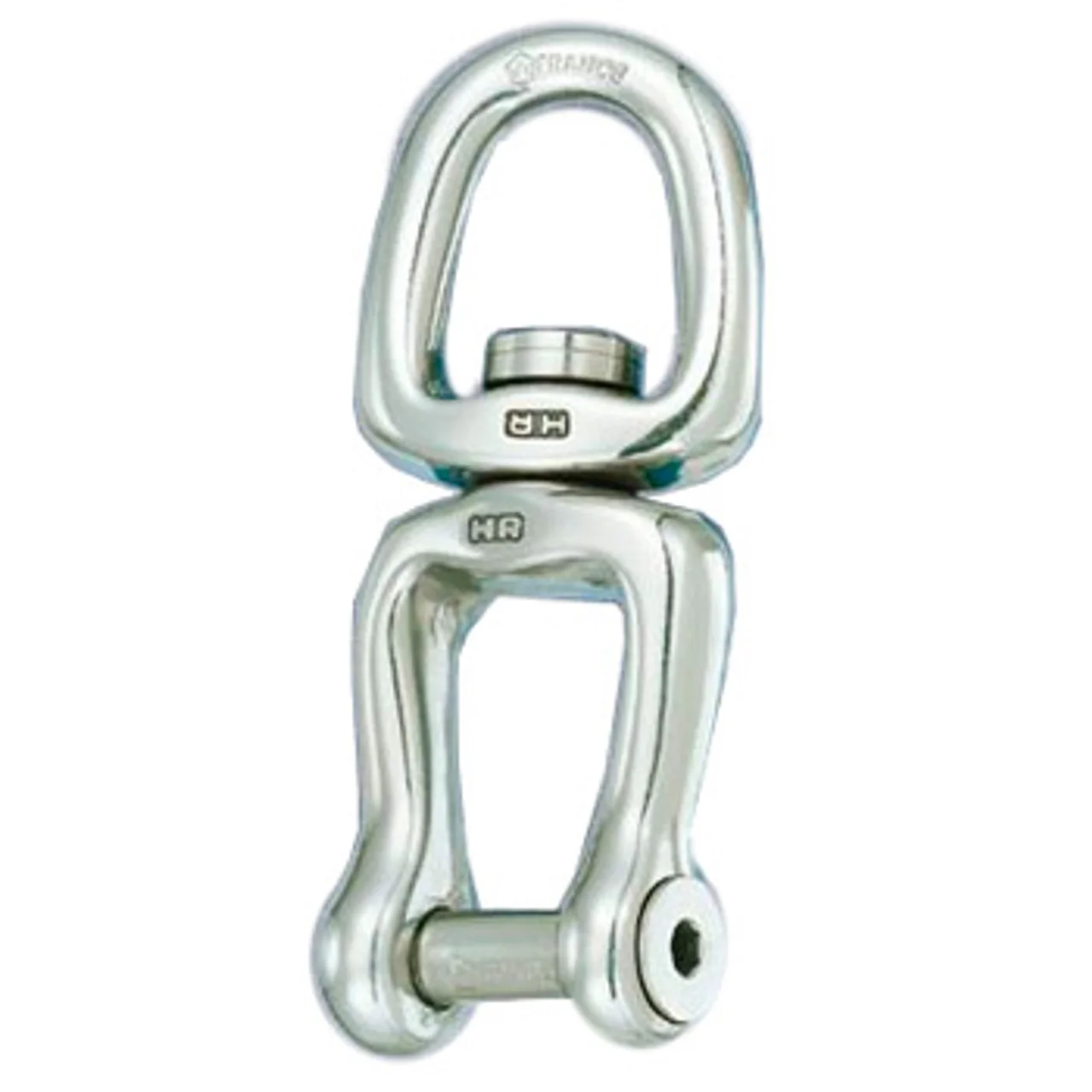

Wichard 5/16 Eye and Allen Head Swivel
Manufacturer part #: 2364
Manufacturer part #: 2364
HR forged swivel (17.4 Ph) with only one opening and one eye; low clutter (pin with allen head). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Eye and Allen Head Swivel | ||
| Length | 2 3/4 in | 70 mm | |
| A | 9/16 in | 14 mm | |
| B | 13/16 in | 21 mm | |
| C | 7/16 in | 11 mm | |
| D Ø | 5/16 in | 8 mm | |
| Weight | 2.96 oz | 84 g | |
| Working Load | 3174 lb | 1440 kg | |
| Breaking Load | 6172 lb | 2800 kg | |
Manufacturer part #: 2364
HR forged swivel (17.4 Ph) with only one opening and one eye; low clutter (pin with allen head). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
Manufacturer part #: 2364
Manufacturer part #: 2364
HR forged swivel (17.4 Ph) with only one opening and one eye; low clutter (pin with allen head). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Eye and Allen Head Swivel | ||
| Length | 2 3/4 in | 70 mm | |
| A | 9/16 in | 14 mm | |
| B | 13/16 in | 21 mm | |
| C | 7/16 in | 11 mm | |
| D Ø | 5/16 in | 8 mm | |
| Weight | 2.96 oz | 84 g | |
| Working Load | 3174 lb | 1440 kg | |
| Breaking Load | 6172 lb | 2800 kg | |
Manufacturer part #: 2364
HR forged swivel (17.4 Ph) with only one opening and one eye; low clutter (pin with allen head). Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
