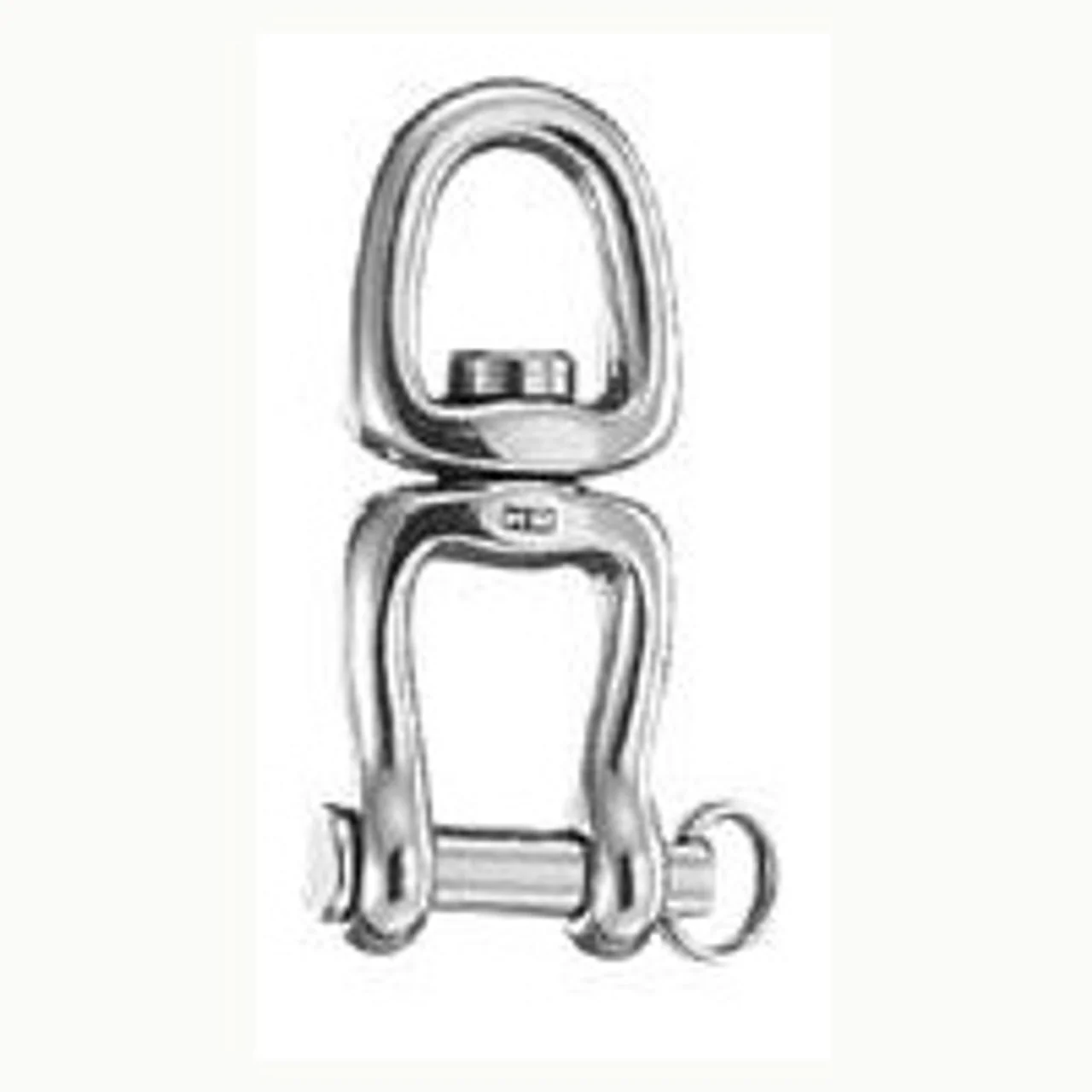

Wichard 7/16 Eye Swivel Clevis Ball Bearing
Manufacturer part #: 82465
Manufacturer part #: 82465
HR forged swivel (17.4 Ph) with only one opening side and one eye; with ball bearings for an easier rotation. Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Eye Swivel Clevis Ball Bearing | ||
| Length | 4 1/8 in | 105 mm | |
| A | 3/4 in | 19 mm | |
| B | 1 1/4 in | 31 mm | |
| C | 23/32 in | 18 mm | |
| D Ø | 7/16 in | 11 mm | |
| Weight | 9.87 oz | 280 g | |
| Working Load | 7054 lb | 3200 kg | |
| Breaking Load | 13227 lb | 6000 kg | |
Manufacturer part #: 82465
HR forged swivel (17.4 Ph) with only one opening side and one eye; with ball bearings for an easier rotation. Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
Manufacturer part #: 82465
Manufacturer part #: 82465
HR forged swivel (17.4 Ph) with only one opening side and one eye; with ball bearings for an easier rotation. Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Eye Swivel Clevis Ball Bearing | ||
| Length | 4 1/8 in | 105 mm | |
| A | 3/4 in | 19 mm | |
| B | 1 1/4 in | 31 mm | |
| C | 23/32 in | 18 mm | |
| D Ø | 7/16 in | 11 mm | |
| Weight | 9.87 oz | 280 g | |
| Working Load | 7054 lb | 3200 kg | |
| Breaking Load | 13227 lb | 6000 kg | |
Manufacturer part #: 82465
HR forged swivel (17.4 Ph) with only one opening side and one eye; with ball bearings for an easier rotation. Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
$236.98
Wichard 7/16 Eye Swivel Clevis Ball Bearing—
$236.98
Description
Manufacturer part #: 82465
Manufacturer part #: 82465
HR forged swivel (17.4 Ph) with only one opening side and one eye; with ball bearings for an easier rotation. Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
HR stainless steel 17.4 PH
| Features | American | Metric | |
|---|---|---|---|
| Description | Eye Swivel Clevis Ball Bearing | ||
| Length | 4 1/8 in | 105 mm | |
| A | 3/4 in | 19 mm | |
| B | 1 1/4 in | 31 mm | |
| C | 23/32 in | 18 mm | |
| D Ø | 7/16 in | 11 mm | |
| Weight | 9.87 oz | 280 g | |
| Working Load | 7054 lb | 3200 kg | |
| Breaking Load | 13227 lb | 6000 kg | |
Manufacturer part #: 82465
HR forged swivel (17.4 Ph) with only one opening side and one eye; with ball bearings for an easier rotation. Outstanding working and breaking loads.
Applications
Link two pieces which have different rotation; for applications requiring an easier rotation.
Material
