Harken 4mm Shallow Bow Shackle
Harken 4mm Shallow Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.
Technical Description
| Weight (g) | 8.5 g |
| Weight (oz) | 0.3 oz |
| Maximum working load (kg) | 367 kg |
| Maximum working load (lb) | 810 lb |
| Breaking load (kg) | 735 kg |
| Breaking load (lb) | 1620 lb |

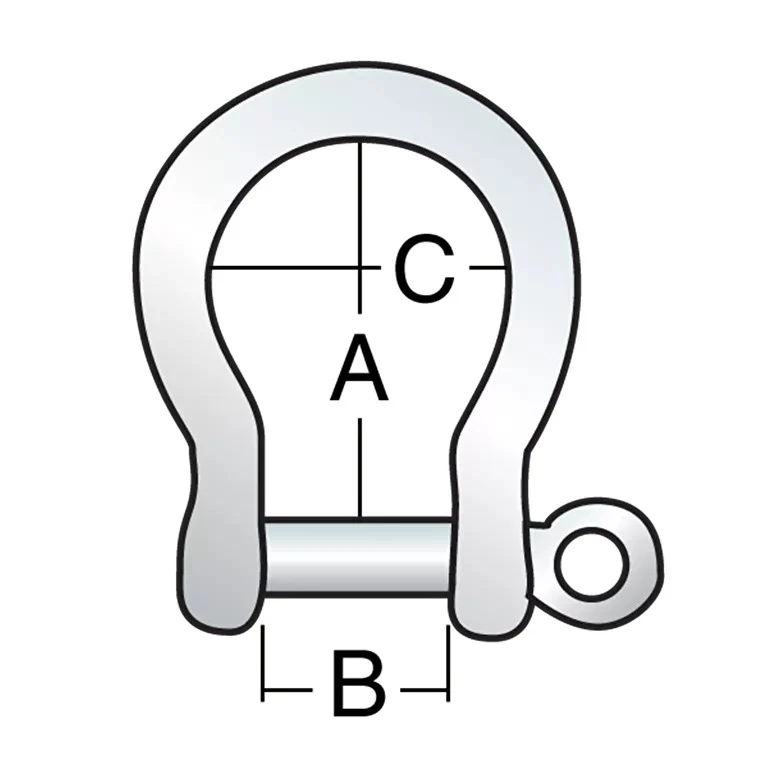

| A (mm) | 16 mm |
| A (in) | 5/8 in |
| B (mm) | 8 mm |
| B (in) | 5/16 in |
| C (mm) | 11 mm |
| C (in) | 7/16 in |
| Shackle pin Ć (mm) | 4 mm |
| Shackle pin Ć (in) | 5/32 in |
