Harken 5mm Shallow Bow Shackle
Harken 5mm Shallow Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.
Technical Description
| Weight (g) | 14.5 g |
| Weight (oz) | 0.51 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (kg) | 1080 kg |
| Breaking load (lb) | 2380 lb |

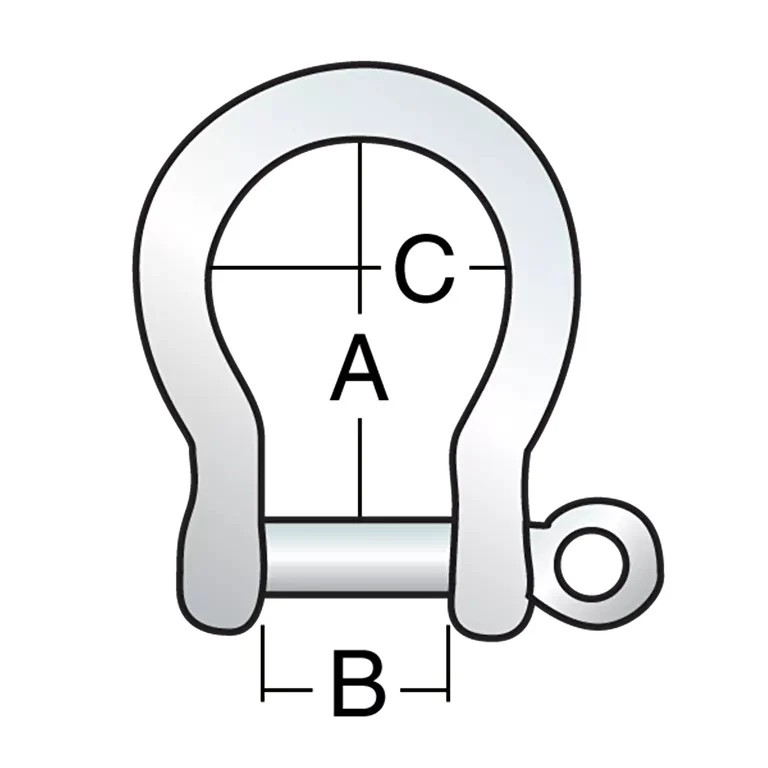

| A (mm) | 17 mm |
| A (in) | 11/16 in |
| B (mm) | 11 mm |
| B (in) | 7/16 in |
| C (mm) | 14 mm |
| C (in) | 9/16 in |
| Shackle pin Ć (mm) | 5 mm |
| Shackle pin Ć (in) | 3/16 in |
Harken 5mm Shallow Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.
Technical Description
| Weight (g) | 14.5 g |
| Weight (oz) | 0.51 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (kg) | 1080 kg |
| Breaking load (lb) | 2380 lb |
| A (mm) | 17 mm |
| A (in) | 11/16 in |
| B (mm) | 11 mm |
| B (in) | 7/16 in |
| C (mm) | 14 mm |
| C (in) | 9/16 in |
| Shackle pin Ć (mm) | 5 mm |
| Shackle pin Ć (in) | 3/16 in |
