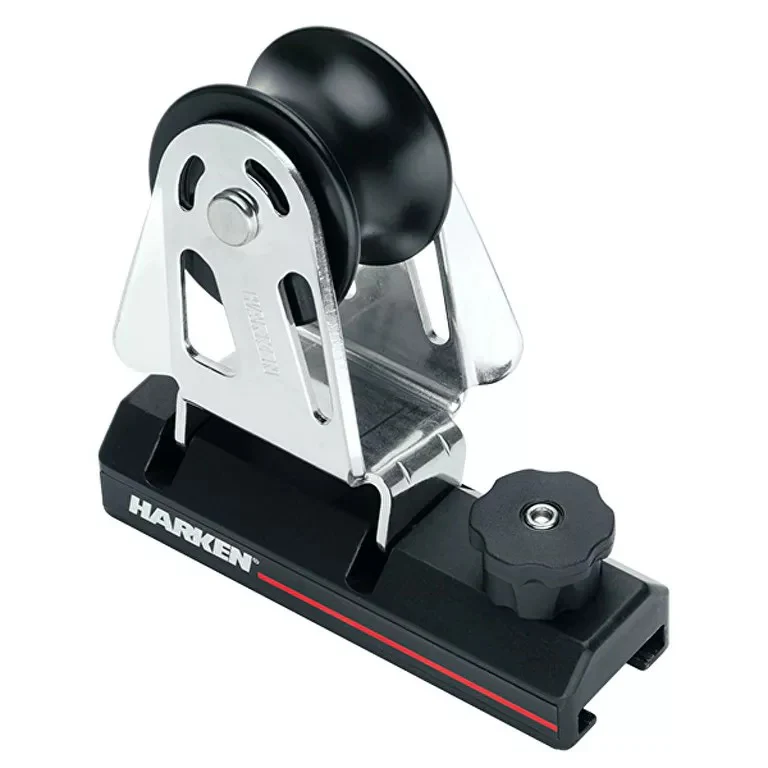

Harken MR 25mm Slider Genoa T-Track Retrofit Car w/Pinstop
Harken MR 25mm Slider Genoa T-Track Retrofit Car w/Pinstop
T-Track genoa lead cars are used where frequent lead adjustments are not required. T-Track cars have an integral pinstop to lock the car into position. The car’s one-piece, solid aluminum construction is lightweight and strong. The stainless steel carrier tilts side-to-side to ensure a fair lead.
Technical Description
| Sheave Ø (mm) | 51 mm |
| Sheave Ø (in) | 2 in |
| Length (mm) | 118 mm |
| Length (in) | 4 11/16 in |
| Width (mm) | 59 mm |
| Width (in) | 2 3/8 in |
| Height (mm) | 110 mm |
| Height (in) | 4 3/8 in |
| Weight (g) | 475 g |
| Weight (oz) | 16.8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum working load (kg) | 1134 kg |
| Maximum working load (lb) | 2500 lb |
| Breaking load (kg) | 2268 kg |
| Breaking load (lb) | 5000 lb |
| Use with track/rail | 25 mm |
Harken MR 25mm Slider Genoa T-Track Retrofit Car w/Pinstop
T-Track genoa lead cars are used where frequent lead adjustments are not required. T-Track cars have an integral pinstop to lock the car into position. The car’s one-piece, solid aluminum construction is lightweight and strong. The stainless steel carrier tilts side-to-side to ensure a fair lead.
Technical Description
| Sheave Ø (mm) | 51 mm |
| Sheave Ø (in) | 2 in |
| Length (mm) | 118 mm |
| Length (in) | 4 11/16 in |
| Width (mm) | 59 mm |
| Width (in) | 2 3/8 in |
| Height (mm) | 110 mm |
| Height (in) | 4 3/8 in |
| Weight (g) | 475 g |
| Weight (oz) | 16.8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum working load (kg) | 1134 kg |
| Maximum working load (lb) | 2500 lb |
| Breaking load (kg) | 2268 kg |
| Breaking load (lb) | 5000 lb |
| Use with track/rail | 25 mm |
Original: $332.95
-70%$332.95
$99.88Description
Harken MR 25mm Slider Genoa T-Track Retrofit Car w/Pinstop
T-Track genoa lead cars are used where frequent lead adjustments are not required. T-Track cars have an integral pinstop to lock the car into position. The car’s one-piece, solid aluminum construction is lightweight and strong. The stainless steel carrier tilts side-to-side to ensure a fair lead.
Technical Description
| Sheave Ø (mm) | 51 mm |
| Sheave Ø (in) | 2 in |
| Length (mm) | 118 mm |
| Length (in) | 4 11/16 in |
| Width (mm) | 59 mm |
| Width (in) | 2 3/8 in |
| Height (mm) | 110 mm |
| Height (in) | 4 3/8 in |
| Weight (g) | 475 g |
| Weight (oz) | 16.8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum working load (kg) | 1134 kg |
| Maximum working load (lb) | 2500 lb |
| Breaking load (kg) | 2268 kg |
| Breaking load (lb) | 5000 lb |
| Use with track/rail | 25 mm |
